M-400: How to Reset a Channel's Parameters

Recalling a channel's "Default" library can reset its parameters without affecting other console settings.

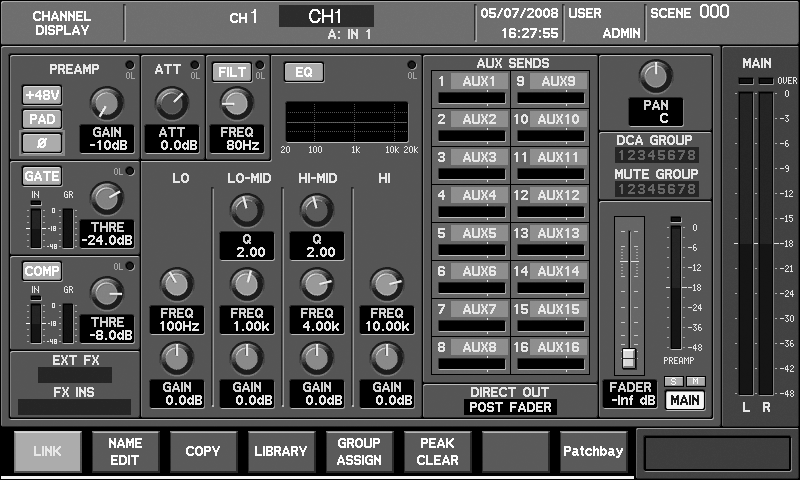

  1. Press the [SEL] button to select the desired channel.

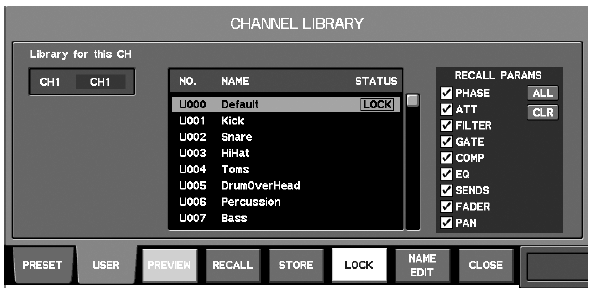

  2. Press [F4 (LIBRARY)] to access the CH LIBRARY popup.
  3. Press [F1(PRESET)] to select the preset library.
  4. Use the scroll wheel to select "000 Default" at the top of the list.
  5. Use the cursor buttons to select the "RECALL PARAMS" section and then put a check-mark in each of the areas that will be reset.
    Note: If you want all parameters reset, place a check-mark in all of the boxes.
  6. Press [F4(RECALL)].
  7. Press [F8 (RECALL)] to execute the library recall operation.
  8. The channel reset is complete.

Note: These steps do not change insert effect settings. If an effect is still heard after following the steps below, press the [EFFECTS] button beneath the screen and then check the "INSERT/SOURCE" settings to see if the channel is inserted on an effect.
