SR-20HD: Is there a lip sync feature?

If there is a discrepancy between the video and the audio timing, the SR-20HD lets you correct it by delaying the audio output.

Follow the steps below.

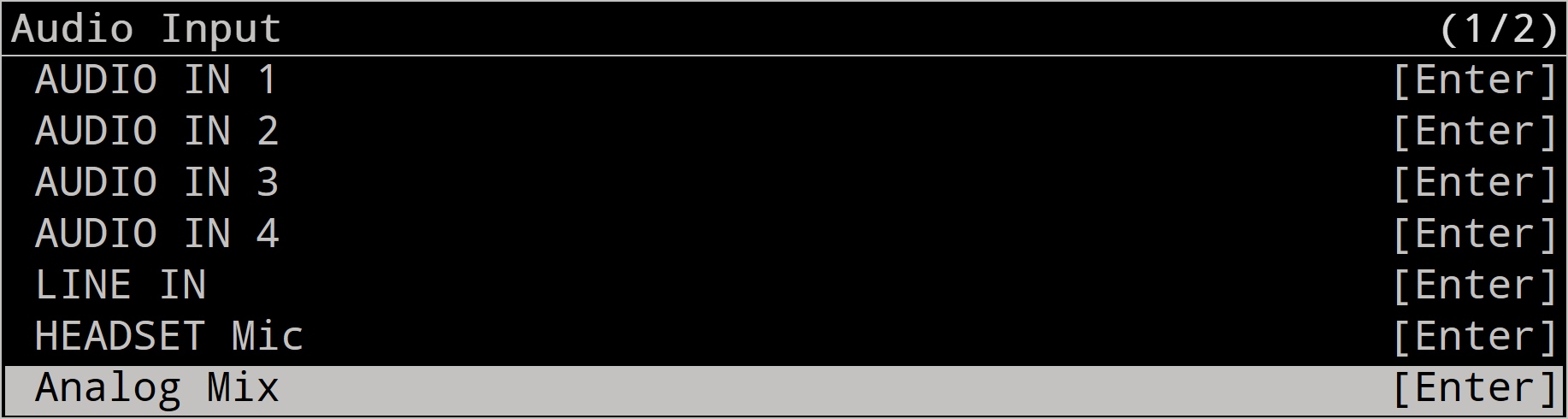

  1. From the [MENU] button, select Audio Input, then Analog Mix, and press the [VALUE/CURSOR] knob.

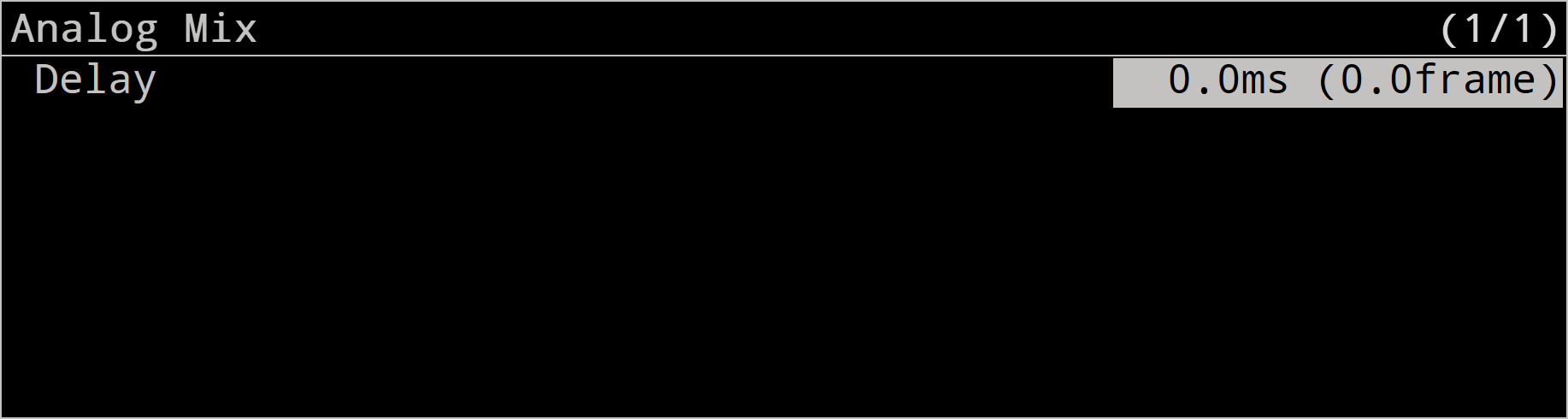

  2. Select Delay, and press the [VALUE/CURSOR] knob.
  3. Use the [VALUE/CURSOR] knob to adjust the input audio delay time, and then press the [VALUE/CURSOR] knob.
    Value: 0.0–166.6 ms (0.0–9.9/8.3 frame)
    * This changes depending on the “Frame Rate” settings in the System menu.
  4. Press the [MENU] button to close the menu.
