UVC-02: I can't hear the SFX sounds that play back when I press the [A2] button.
On the UVC-02, “Sound effect (SFX2)” is assigned to the [A2] button (factory default settings). If you can’t hear the sound effects even when you press the [A2] button, check the various settings. Use the same steps if you’ve set the [A1] button to play sound effects.
-
Connect your computer on which the UVC-02 Setup Tool is installed to the UVC-02 by using the included USB cable. The
- UVC-02 Setup Tool launches automatically.
-

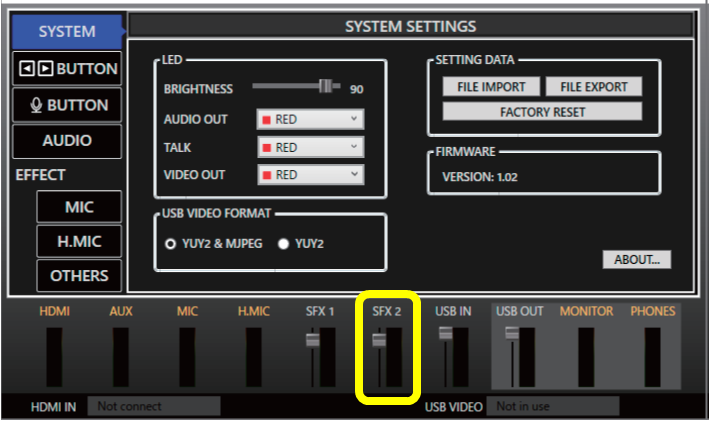

Click the [SYSTEM] tab to open the SYSTEM SETTINGS, and raise the SFX2 input/output slider.
-

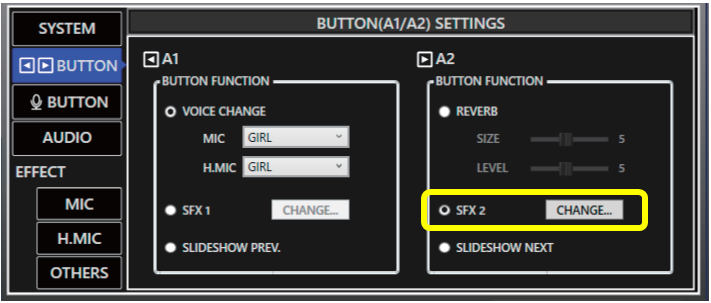

Click the [BUTTON] tab to open the BUTTON (A1/A2) SETTINGS, and select SFX 2 for the BUTTON FUNCTION of A2.
-

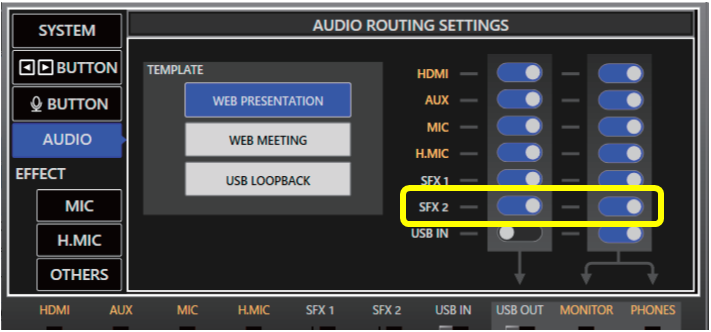

Click the [AUDIO] tab to open the AUDIO ROUTING SETTINGS, and set the output switch for SFX 2 to the ON position.
