V-02HD: Quickstart Guide

This article contains links and information to help you get started with the V-02HD.

For additional support, please submit a ticket at roland.com/backstage

There are two hardware versions of the V-02HD. This guide is for the V-02HD. The V-02HD MK II has different features and firmware updates: V-02HD MK II: Quickstart Guide

To help identify yours, each version has a different printed label along the top:

Quickstart Topics:

Product Videos

Instruction Manuals

Firmware Updates

Choosing Cameras

Video Resolutions

Audio Setup

Connecting Laptops

Adding Live Graphics

Adding Still Images

Recalling Presets

Streaming Video*

Recording Video*

Software Control

Protecting Settings

Foot Switch Control

HDCP Troubleshooting

Product Images

Additional Links

*Requires UVC-01

Click on a topic to jump to that section

PRODUCT VIDEOS

Getting to Know the V-02HD
- Walks you through the features and ways to use it
V-02HD: Introduction and Applications
- Walks you through the features and ways to use it

back to top

INSTRUCTION MANUALS

Inside the box is a copy of the Startup Guide. Please download the Reference Manual as well, it contains detailed walkthroughs for every feature.

Additionally, there is a separate Remote Connection Guide for the free iPad Remote app.

back to top

FIRMWARE UPDATES

Please check that the firmware on your V-02HD is version 1.20:

Go to: MENU > SYSTEM > VERSION

If it is an earlier version, use this update guide:

V-02HD: How to Update the System Program Firmware

When you update the firmware, also check that you have the latest version of the Remote app for iPad.

back to top

CHOOSING CAMERAS

These guides help you choose the best type of camera for your workflow, set it up to output a compatible video resolution, and also output video without menu overlays or screen information.

back to top

VIDEO RESOLUTIONS

The V-02HD has multi-format input scalers on each input, which automatically resize the input sources to match the output resolution.

There is also an output scaler to further adjust the output resolution, as well as output size and position. These are like worry-free inputs, allowing you to mix different source resolutions together across your inputs.

You can set the V-02HD's system output resolution by going to:
Menu > Video Output > Scaling > Format

V-02HD: How to Set Up and Adjust the Video Input and Output Formats

back to top

AUDIO SETUP

When you first turn on the V-02HD, it is set to mix all 1/8" and HDMI input audio at their current levels and output the mix via the HDMI outputs. You can adjust the levels using a combination of the Audio Input and Audio Output menus and the iPad Remote App.

back to top

CONNECTING LAPTOPS

On your PC or Mac, there are two ways to set up the computer's HDMI output to your V-02HD: Duplicate and Extend.

Duplicate creates a copy of your Desktop, including your Taskbar or Dock. Your mouse will appear on both screens.
Extend creates a clean desktop, and you can move your mouse between the two.

These guides walk you through general setup in Windows 10 and MacOS:

If you use software that generates visuals or plays media files, there may be additional screen output settings in the software:

back to top

ADDING LIVE GRAPHICS

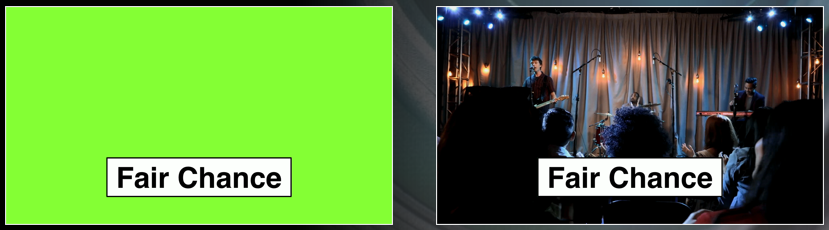

You can overlay graphics like lower thirds and logos using the KEY function, which uses a keyer to remove a solid color from an overlay source.

back to top

ADDING STILL IMAGES

You can import a single still image to the V-02HD using the Capture Image function, which creates a still image from any video input.

back to top

RECALLING PRESETS

The V-02HD can store up to 8 preset memories.

You can store and recall memories using the V-02HD's on screen menu, or the Remote App.

The following are not saved to preset memories:

Headphone knob level
Preset Memory menu
CTL/EXP menu
Capture Image menu
System menu
V-02HD: How to Save and Recall Settings Using Preset Memories

back to top

STREAMING VIDEO

The USB Type B port on the back of the V-02HD can:

Connect to the iPad Remote app
Backup and restore settings via the V-02HD Utility Software
Update the firmware via the V-02HD Utility Software

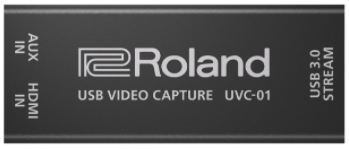

Note that it does not output audio and video for streaming or recording, you will need an HDMI to USB Capture Device, like our UVC-01:

This device is not the same as a USB to HDMI display adapter,
those are used to add an additional display to a computer

The UVC-01 gives you free access to Roland’s AeroCaster Switcher for iPad. With this app, you can wirelessly connect and switch up to five sources (phone cameras, tablet cameras, laptop webcams, and laptop browser tabs), then output a combined program feed to an HDMI input on the V-02HD.

AeroCaster Switcher Product Page

Here are some streaming guides. Some are written for the VR series models, but a V-02HD outputting to a UVC-01 is similar to the USB Streaming output on the VR series.

Streaming Software Guides

Windows

Roland Live Streamer: How to Set Up and Use this Free Software to Stream
- Facebook, YouTube, Twitch, etc.
- Compatible with Windows 10/11 and Roland streaming hardware
  - Requires Intel i5 or higher with Quick Sync, i3 and Celeron may not work
  - AMD processors are not compatible

Windows and Mac

Roland Switchers: How to Customize Live Streams With OBS
- Facebook, YouTube, Twitch, etc.
- Compatible with Windows, Mac, and all capture devices
Roland Switchers: How to Stream to Zoom Directly
- Compatible with Windows, Mac, and all capture devices

back to top

RECORDING VIDEO

The V-02HD does not output audio and video for recording, you will need an HDMI to USB Capture Device, like our UVC-01.

You can record the UVC-01's USB streaming output with software that can record USB video.

Here are some software guides:

Windows

Roland Live Recorder: How to Set Up and Use this Free Software to Record Video
- Compatible with Windows 10/11 and Roland streaming hardware
  - Requires Intel i5 or higher with Quick Sync, i3 and Celeron may not work
  - AMD processors are not compatible

Windows and Mac

Roland Video Capture for VR
- Compatible with Windows, Mac (Intel & M1), and all capture devices
- Roland Switchers: M1 Mac Compatibility Information

back to top

SOFTWARE CONTROL

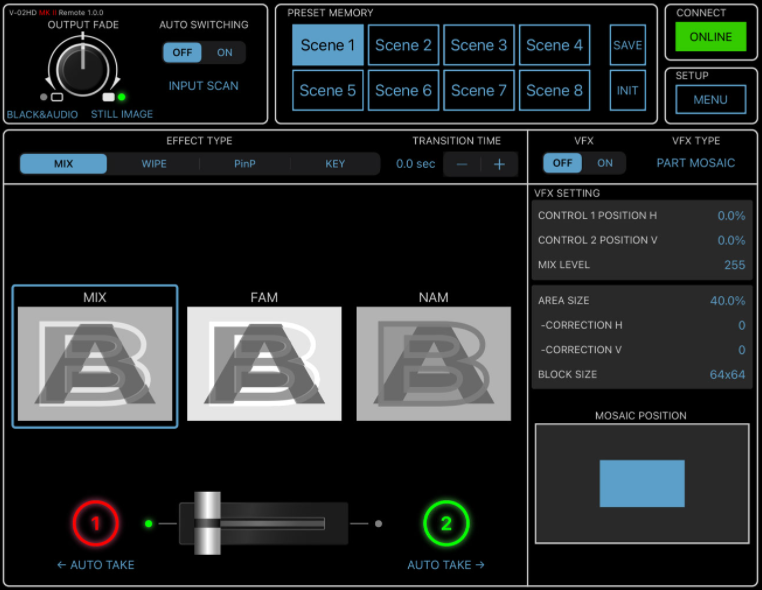

There is free control software for the V-02HD:

Update your firmware to the latest version for best compatibility.

To connect the V-02HD to its Remote app, you need the following:

Lightning to USB Camera Adapter
- Apple MK0W2AM/A or MD821AM/A
USB 2.0 (Type B to Type A) cable

back to top

PROTECTING SETTINGS

There are multiple ways to protect your settings on the V-02HD:

Store settings as a Preset Memory
Enable Memory Protect in the Preset Memory menu
Backup all settings using the V-02HD Utility software
- (Utility Owner's Manual, page 3)
Enable Panel Lock for some of the physical controls
- (Reference Manual, page 29, 43)

back to top

FOOT SWITCH CONTROL

The V-02HD supports control from a BOSS foot switch controller:

FS-5U, FS-6 , and FS-7 foot switches
EV-5 , FV-500L, and FV-500H expression pedals

You can set them up in the CTL/EXP menu:

V-02HD: How To Set Up A Foot Switch Controller

back to top

HDCP TROUBLESHOOTING

The V-02HD supports many video source devices, but DVD/Blu-Ray players and Streaming Boxes require HDCP (High-bandwidth Digital Content Protection) to be turned on in the system settings. Once enabled, the signal will pass through.

But there are exceptions. If the V-02HD's HDMI output is connected to a recording or streaming device, or a converter that outputs SDI or Analog video, that device will block the DVD/Blu-Ray player's HDCP copy-protected signal passing through the switcher.

So long as the only destination devices are displays or projectors, then you should not have any issues with enabling HDCP.

HDMI CAT Extenders: These are a pair of converters that extend an HDMI signal by converting it to Ethernet and back to HDMI again. These extenders may add HDCP to the signal, even if the source is a camera. Please check with the extender's manufacturer regarding compatibility. SDI converters or HDBaseT extenders are recommended as they do not add or require HDCP.

Game Consoles: These may have HDCP enabled by default for all games and content, or just for streaming services and disc playback. If you want to stream or record the Roland's output, then HDCP needs to be disabled on both the game console and the Roland. Consoles either do this automatically or have a menu setting. Check your game console's manual for more information.
