V-160HD: Quickstart Guide

This article contains links and information to help you get started with the V-160HD.

For additional support, please submit a ticket at roland.com/backstage



Quickstart Topics:

Product Videos

Instruction Manuals

Firmware Updates

Choosing Cameras

Video Resolutions

Audio Setup

Connecting Laptops

AeroCaster Switcher

Adding Live Graphics

Adding Still Images

Streaming Video

Recording Video

Software Control

Control Systems

PTZ Camera Control

Footswitch Control

Protecting Settings

HDCP Troubleshooting

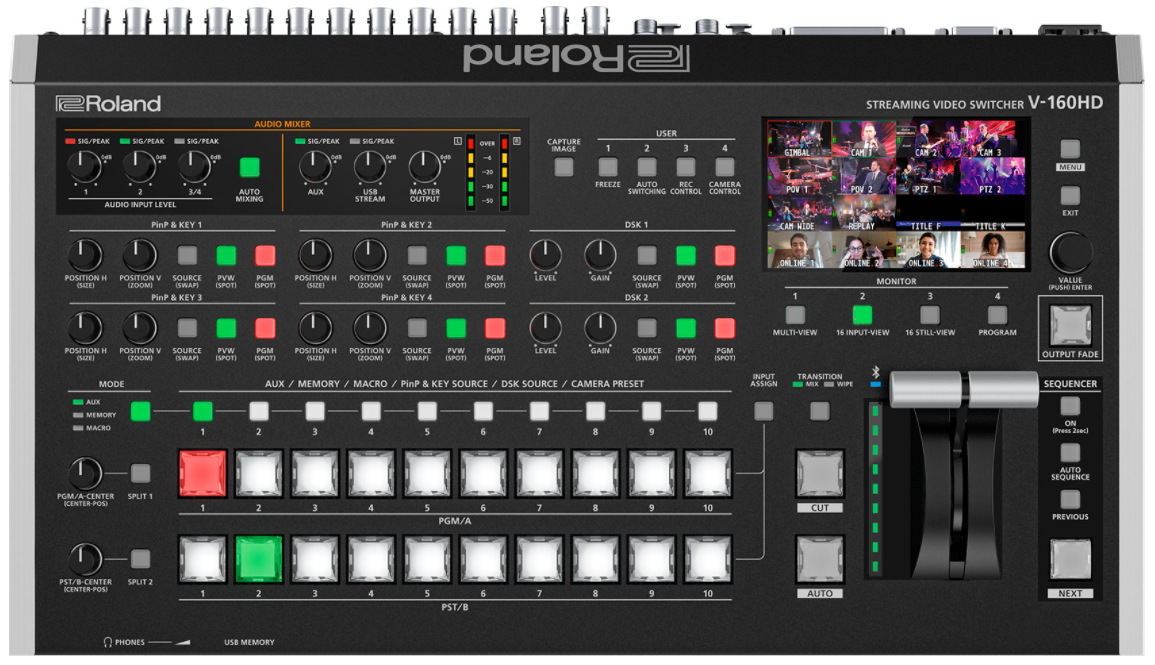

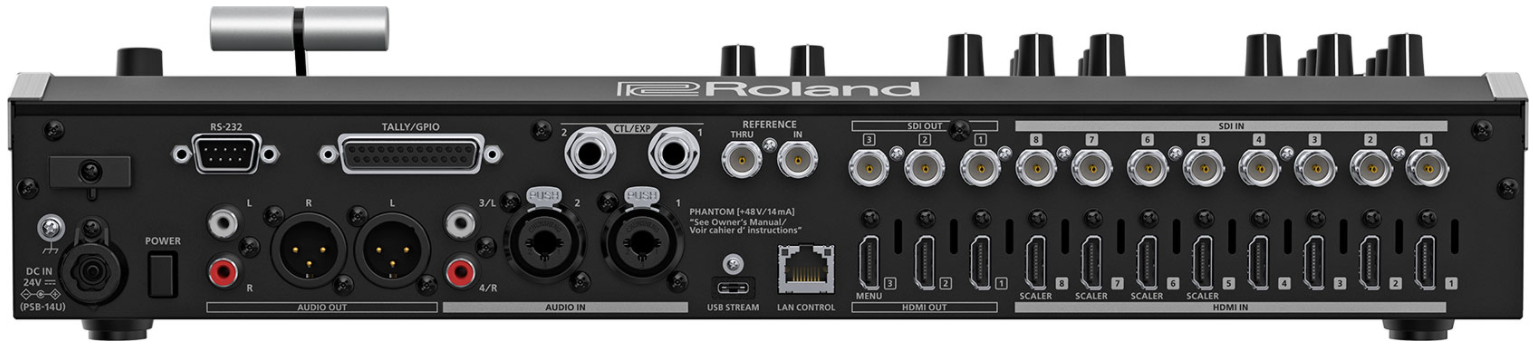

Product Images

Additional Links

Click on a topic to jump to that section



PRODUCT VIDEOS



back to top

INSTRUCTION MANUALS

Inside the box is a copy of the Startup Guide. Please download the Reference Manual as well, it contains detailed walkthroughs for every feature.

To program the V-160HD with a control system, please use the Remote Control Guide.

Additionally, there is a separate Remote Connection Guide for the free iPad Remote app.



back to top

FIRMWARE UPDATES

Please check that the firmware on your V-160HD is version 3.00:

  • Go to: MENU > SYSTEM > VERSION

If it is an earlier version, use this update guide:

When you update the firmware, also check that you have the latest version of the RCS software for Windows/MacOS and Remote app for iPad.



New Features

Version 3.0:

  • Two Additional Aux Buses—There are now three total Aux buses for both video and audio, providing more flexibility in system configurations.
  • iPad Video Monitoring and Switching—Full control is now available using the iPad Remote app and many of the latest iPad models with USB-C.
  • External PTZ Control Enhancements—You can now adjust pan, tilt, and zoom for each camera and assign/recall presets from a USB numeric keypad.
  • New Audio Effects—Loudness auto gain and adaptive noise reduction options help improve sound quality, especially during streaming events.
  • Expanded Language Support—Japanese and Chinese language support has been added to the iPad Remote app and RCS (Remote Control Software) for macOS and Windows.

Version 2.0:

  • New video output formats for all SDI and HDMI outputs
    • 1080/23.98p, 1080/24p, 1080/25p, 1080/29.97p, and 1080/30p
  • Add composition layers (PinP, DSK) to the Aux output
    • In addition to the Program and Sub-Program outputs
  • Set each video output to interlaced or progressive video independently
  • Freely assign inputs and change their order in the input display
  • Embed different audio channel pairs (1/2, 3/4, 5/6, 7/8) with the HDMI and SDI inputs
  • Record macros in real time with panel actions
    • Edit them via menus in the LCD screen, RCS, or iPad remote app
  • New Dissolve switching mode and PGM/PST (20) switching modes



back to top

CHOOSING CAMERAS

These guides help you choose the best type of camera for your workflow, set it up to output a compatible video resolution, and also output video without menu overlays or screen information.



back to top

VIDEO RESOLUTIONS

If MENU > SYSTEM > SYSTEM FORMAT is:

  • 1080p, Inputs can be 1080i or 1080p*, and Outputs are 1080p**
  • 1080i, Inputs can be 1080i or 1080p*, and Outputs are 1080i**
  • 720p, Inputs can be 720p*, and Outputs are 720p**
  • *HDMI Inputs 5-8 are also multi-format and auto-detect resolution
  • **HDMI Output 3 is always 1080p



If using 1080p, the SDI video signal is "3G" and there are 2 "Levels", A and B. If you experience compatibility issues with your SDI output, you can change the Level in MENU > VIDEO OUTPUT > SDI OUT 1/2 > 3G-SDI MAPPING





back to top

AUDIO SETUP

When you first turn on the V-160HD, it is set to mix all XLR, RCA, and embedded input audio at their current levels and output the mix via the video and USB outputs. You can adjust the levels using a combination of the Audio Input/Output menus and iPad Remote App.



If you are using the USB Streaming Output, make sure that both the Master Output and USB Stream knobs are turned up to 0 dB.





back to top

CONNECTING LAPTOPS

On your PC or Mac, there are two ways to set up the computer's HDMI output to your V-160HD: Duplicate and Extend.

  • Duplicate creates a copy of your Desktop, including your Taskbar or Dock. Your mouse will appear on both screens.
  • Extend creates a clean desktop, and you can move your mouse between the two.

These guides walk you through general setup in Windows 10 and MacOS:

If you use software that generates visuals or plays media files, there may be additional screen output settings in the software:



back to top

AEROCASTER SWITCHER

The V-160HD gives you free access to Roland’s AeroCaster Switcher for iPad. With this app, you can wirelessly connect and switch up to five sources (phone cameras, tablet cameras, laptop webcams, and laptop browser tabs), then output a combined program feed to an HDMI input on the V-160HD.



AeroCaster Switcher Product Page



back to top

ADDING LIVE GRAPHICS

You can overlay graphics like lower thirds and logos using the DSK or Picture in Picture functions, which use keyers to remove a solid color or the alpha channel from an overlay source.






Here are the available keyer types:

PinP 1-4: Luma, Chroma

DSK 1-2: Luma, Chroma, Alpha (PNG only), External (Key and Fill sources)





back to top

ADDING STILL IMAGES

You can import up to 16 still images using the Capture Image function, which creates a still image from any video input, or import them using a flash drive and the USB Memory port.

  • A 16 GB or smaller USB Flash Drive is recommended
    • Larger drives may not format or function
    • SD card adapters and hard drives are not compatible
  • The Format setting in the menu will format the USB Flash Drive as "FAT32"
    • You can also format it using your computer, but using the menu is recommended

Here are the recommended settings to import a still image via USB:

Format

Bitmap (.bmp), 24-bit color, uncompressed

PNG (.png), 24-bit color + 8-bit alpha channel

* Alpha channel supported with DSK

JPEG (.jpg & .jpeg), 24-bit color

* .jpeg requires version 1.06 or later
Resolution

Matches the System Format:

720P = 1280x720

1080i/1080P = 1920x1080
File Name

No more than 64 single-byte alphanumeric characters

* Add the extension ".bmp", ".png", ".jpg", or ".jpeg"

​



back to top

STREAMING VIDEO

The USB-C Stream port on the back of the V-160HD can:

  • Stream video and audio
  • Connect to the iPad Remote app
    • The Remote app also supports Bluetooth and LAN connections

The USB Type A port on the front of the V-160HD can:

  • Import still images
  • Backup and restore settings
  • Update the firmware



Streaming Setup Guides

A USB-C cable is not included. The following cables are recommended:

If you use Zoom or Teams with a recommended cable and you notice any issues with the video quality, please use this guide to change your USB output setting:

If you have any other issues with your USB signal, this guide helps you troubleshoot the connection:



Streaming Software Guides

Windows

Windows and Mac

Some guides are written for the VR series models, but your V-160HD's USB-C output is similar to the USB Streaming output on the VR series:



back to top

RECORDING VIDEO

You can record the V-160HD's USB streaming output with software that can record UVC video.



A USB-C cable is not included. The following cables are recommended:

The V-160HD also has a Record Control function that will start and stop recording via HDMI with compatible external recorders.

Here are some software guides:

Windows

Windows and Mac



back to top

SOFTWARE CONTROL

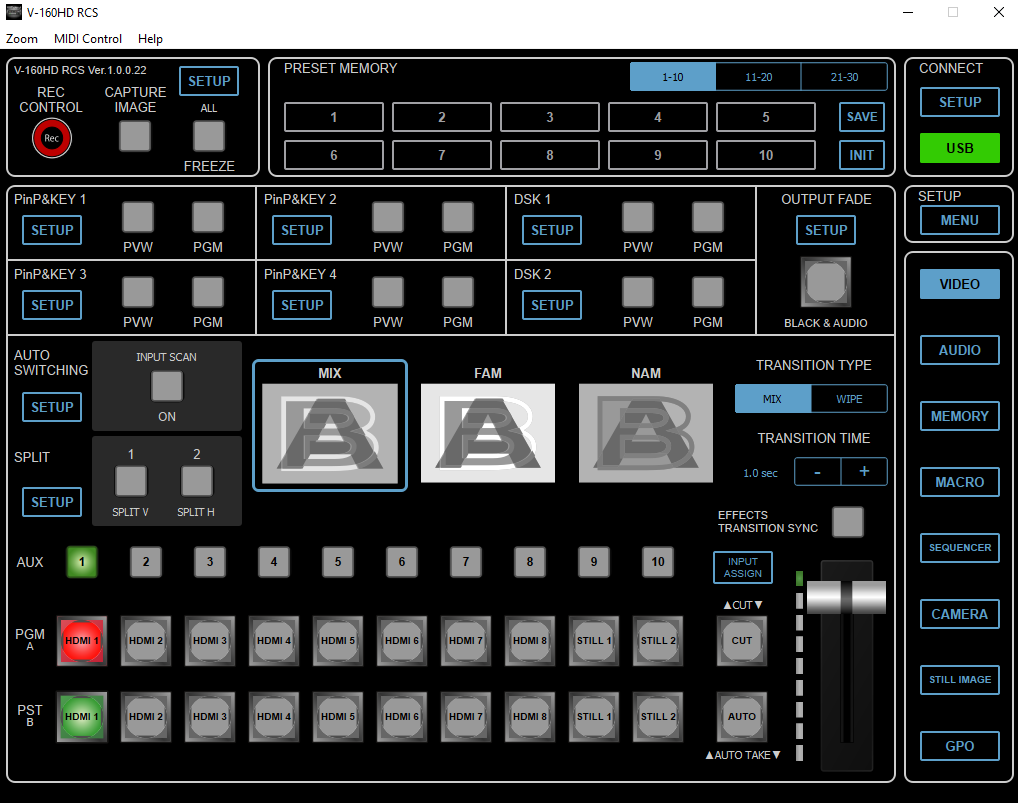

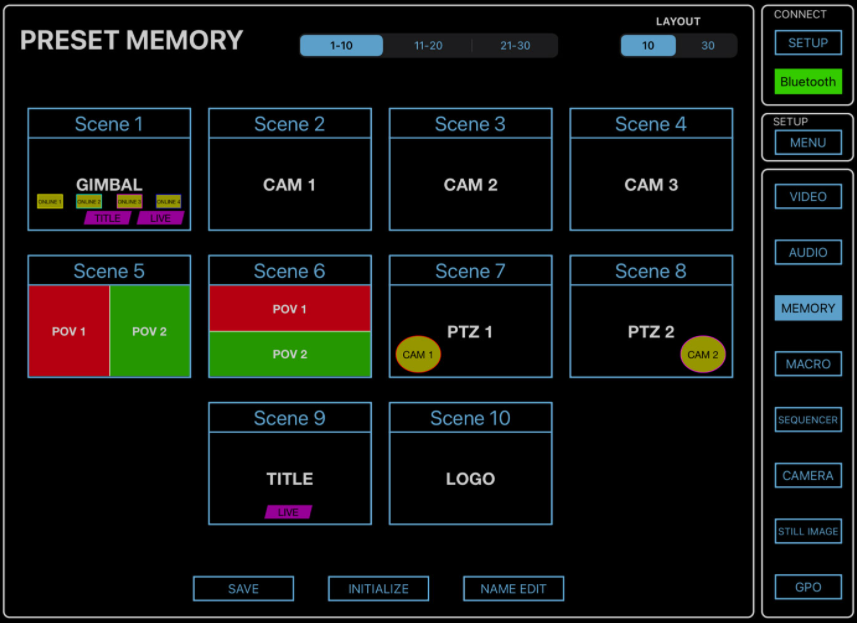

mceclip0.png   mceclip3.png

There is free control software for the V-160HD:

If it does not connect, update your firmware to the latest version.



To connect the V-160HD to the RCS software, you can use either:

  • USB
    • Fully wired control, requires the following:
      • USB Type C to Type A cable
        • Note that you can still use the USB Streaming port for streaming and recording while using the RCS software
  • LAN
    • Wired V-160HD and computer via Ethernet
      • Create a 4-digit network password in the LAN Control menu to use this feature
  • RS-232
    • Wired V-160HD and computer via RS-232
      • Note that the V-160HD has a 9-pin RS-232 port

To connect the V-160HD to the Remote app, you can use either:

  • Bluetooth
    • Fully wireless control
  • LAN
    • Wired V-160HD via Ethernet
      • Create a 4-digit network password in the LAN Control menu to use this feature
    • Wireless iPad
  • USB
    • Fully wired control, requires the following:

Lightning iPads

  • USB 2.0 or 3.0 (Type A to C) cable
    • 16.5 ft. max length
  • Lightning to USB Camera Adapter
    • Apple MK0W2AM/A or MD821AM/A

USB-C iPads

  • USB 2.0 or 3.0 (Type C to C) cable
    • 16.5 ft. max length
  • No Apple adapter required

iPad Models with USB-C
Click here to find your iPad model

  • iPad10th gen or later
  • iPad Mini 6th gen or later
  • iPad Air 4th gen or later
  • iPad Pro 11" 1st gen or later
  • iPad Pro 12.9" 3rd gen or later





back to top

CONTROL SYSTEMS

You can control the V-160HD with 3rd party control systems via LAN or RS-232. The V-160HD also supports MIDI control. More information is in the Remote Control Guide, which is different than the Remote Connection Guide.

  • LAN
    • Wired V-160HD and control system via Ethernet
      • Create a 4-digit network password in the LAN Control menu to use this feature
  • RS-232
    • Wired V-160HD and control system via RS-232
      • Note that the V-160HD has a 9-pin RS-232 port

  • Some button commands are not included in the Remote Control Guide, please contact product support for a complete list.
  • "stx" is not required when using TCP/IP control
  • The V-160HD uses line feed (LF) returns instead of carriage return (CR)



The actual command set is MIDI SysEx, but you use two control commands as wrappers.

  • Calculating the checksum is not required

The V-160HD requires a 4 digit numeric password, you can create one in the LAN Control menu. Depending on the control system, you may need to:

  • Enter the password when you first connect
  • Send the password as the first command once, followed by the actual command
  • Send the password as the first command each time, followed by the actual command



Parameter Write:

  • Example: Press and release the Cut button
    • DTH:0B001E,01;
      Presses and holds the Cut button
      • DTH is the wrapper command
      • 0B 00 1E is the CUT button SysEx command
      • 01 is the on value
    • To release the button, you will need another command:
    • DTH:0B001E,00;
      Releases the Cut button
      • Any momentary button needs to turned off with this 2nd command, otherwise, it's like holding down the button indefinitely

  • Example: Select channel 3 on the PGM/A row of the Crosspoint
    • DTH:002100,02;
      Selects channel 3 on the PGM row of the Crosspoint
      • DTH is the wrapper command
      • 00 21 00 is the PGM Select SysEx command
      • 02 is the value for channel 3
        • The off/release command is not required, as the button stays on until another input select button is pressed, physically or remotely



Parameter Value Retrieve:

Example: Tally status of HDMI Input 3 on the crosspoint

  • If HDMI Input 3 is the PGM and/or PST selection, it will return a status value other than 0
  • If HDMI Input 3 is not assigned to the crosspoint, the status value will always be 0
  • Not the same as the tally light output, but may help control some third party tally systems

RQH:0C0002,000001;
Selects channel 3 on the PGM row of the Crosspoint

  • RQH is the wrapper command
  • 0C 00 02 is the address of the HDMI Input 3 Tally Status SysEx command
  • 00 00 01 is the address size

The control system receives the status as DTH:0C0002,0X

  • If HDMI Input 3 is selected as Nothing, X=0, PGM, X=1, PST, X=2, PGM & PST, X=3





back to top

PTZ CAMERA CONTROL

You can control up to 16 PTZ cameras over a network using the V-160HD menu, RCS software, and the iPad Remote App.

Before you can control any cameras, you need to set up your V-160HD's network settings in the LAN Control menu.



Compatible PTZ brands include: Avonic, Canon, JVC, Panasonic, PTZ Optics, and Sony.

  • Sony cameras use the "VISCA Over IP" protocol
  • Other cameras may work with the "VISCA Over IP" protocol, but are not officially supported
  • Supports PTZ control over IP, and not RS-232 or RS-422.





back to top

FOOT SWITCH CONTROL

The V-160HD supports control from up to 2 BOSS foot switch controllers:



You can set them up in the CTL/EXP menu:



back to top

PROTECTING SETTINGS

There are multiple ways to protect your settings on the V-160HD:



back to top

HDCP TROUBLESHOOTING

The V-160HD supports many video source devices, but DVD/Blu-Ray players and Streaming Boxes require HDCP (High-bandwidth Digital Content Protection) to be turned on in the system settings. Once enabled, the signal will pass through.

But there are exceptions. If the V-160HD's HDMI output is connected to a recording or streaming device, or a converter that outputs SDI or Analog video, that device will block the DVD/Blu-Ray player's HDCP copy-protected signal passing through the switcher.

So long as the only destination devices are displays or projectors, then you should not have any issues with enabling HDCP.

On the V-160HD, turning on HDCP will also disable the SDI and USB streaming outputs.



HDMI CAT Extenders: These are a pair of converters that extend an HDMI signal by converting it to Ethernet and back to HDMI again. These extenders may add HDCP to the signal, even if the source is a camera. Please check with the extender's manufacturer regarding compatibility. SDI converters or HDBaseT extenders are recommended as they do not add or require HDCP.

Game Consoles: These may have HDCP enabled by default for all games and content, or just for streaming services and disc playback. If you want to stream or record the Roland's output, then HDCP needs to be disabled on both the game console and the Roland. Consoles either do this automatically or have a menu setting. Check your game console's manual for more information.



back to top

PRODUCT IMAGES

Click each image for a larger version:







back to top

ADDITIONAL LINKS

  • V-160HD Manuals
    • Owner's Manual, Reference Manual, Remote App Manual, etc.



back to top



支持

Quick Links
