V-02HD MK II: Quickstart Guide

This article contains links and information to help you get started with the V-02HD MK II.

For additional support, please submit a ticket at roland.com/backstage



There are two hardware versions of the V-02HD. This guide is for the V-02HD MK II. The original V-02HD has different features and firmware updates: V-02HD: Quickstart Guide

To help identify yours, each version has a different printed label along the top:



Quickstart Topics:

Product Videos

Instruction Manuals

Firmware Updates

Choosing Cameras

Video Resolutions

Audio Setup

Connecting Laptops

AeroCaster Switcher

Adding Live Graphics

Adding Still Images

Recalling Presets

Streaming Video

Recording Video

Software Control

Protecting Settings

Foot Switch Control

HDCP Troubleshooting

Product Images

Additional Links

Click on a topic to jump to that section



PRODUCT VIDEOS





back to top

INSTRUCTION MANUALS

Inside the box is a copy of the Startup Guide. Please download the Reference Manual as well, it contains detailed walkthroughs for every feature.



Additionally, there is a separate Remote Connection Guide for the free iPad Remote app and RCS Connection Guide for the free RCS Software.



back to top

FIRMWARE UPDATES

Please check that the firmware on your V-02HD is version 1.07:

  • Go to: MENU > SYSTEM > VERSION

If it is an earlier version, use this update guide:

When you update the firmware, also check that you have the latest version of the RCS software for Windows/MacOS and Remote app for iPad.



back to top

CHOOSING CAMERAS

These guides help you choose the best type of camera for your workflow, set it up to output a compatible video resolution, and also output video without menu overlays or screen information.



back to top

VIDEO RESOLUTIONS

The V-02HD MK II has multi-format input scalers on each input, which automatically resize the input sources to match the output resolution.



There is also an output scaler to further adjust the output resolution, as well as output size and position. These are like worry-free inputs, allowing you to mix different source resolutions together across your inputs.



You can set the V-02HD's system output resolution by going to:
Menu > Video Output > Scaling > Format





back to top

AUDIO SETUP

When you first turn on the V-02HD MK II, it is set to mix all 1/8" and HDMI input audio at their current levels and output the mix via the HDMI outputs. You can adjust the levels using a combination of the Audio Input and Audio Output menus and the iPad Remote App or RCS Software.





back to top

CONNECTING LAPTOPS

On your PC or Mac, there are two ways to set up the computer's HDMI output to your V-02HD MK II: Duplicate and Extend.

  • Duplicate creates a copy of your Desktop, including your Taskbar or Dock. Your mouse will appear on both screens.
  • Extend creates a clean desktop, and you can move your mouse between the two.

These guides walk you through general setup in Windows 10 and MacOS:

If you use software that generates visuals or plays media files, there may be additional screen output settings in the software:



back to top

AEROCASTER SWITCHER

The V-02HD MK II gives you free access to Roland’s AeroCaster Switcher for iPad. With this app, you can wirelessly connect and switch up to five sources (phone cameras, tablet cameras, laptop webcams, and laptop browser tabs), then output a combined program feed to an HDMI input on the V-02HD MK II.



AeroCaster Switcher Product Page



back to top

ADDING LIVE GRAPHICS

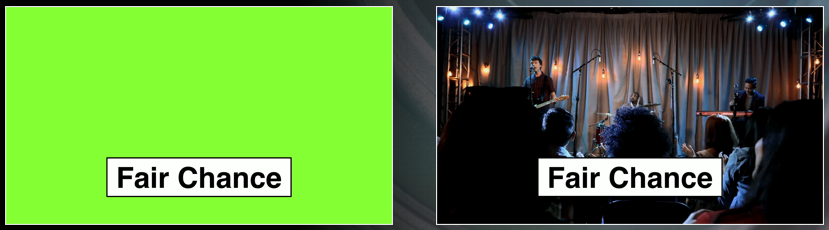

You can overlay graphics like lower thirds and logos using the KEY function, which uses a keyer to remove a solid color from an overlay source.








back to top

ADDING STILL IMAGES

You can import a single still image to the V-02HD MK II using the Capture Image function, which creates a still image from any video input.





back to top

RECALLING PRESETS

The V-02HD MK II can store up to 8 preset memories.

You can store and recall memories using the V-02HD MK II's on screen menu, the RCS Software, or the Remote App.

The following are not saved to preset memories:

  • Headphone knob level
  • Preset Memory menu
  • CTL/EXP menu
  • Capture Image menu
  • System menu

If there are additional menus that you do not want to recall with a preset, you can disable them in the Load Parameter section of the Preset Memory menu.





back to top

STREAMING VIDEO

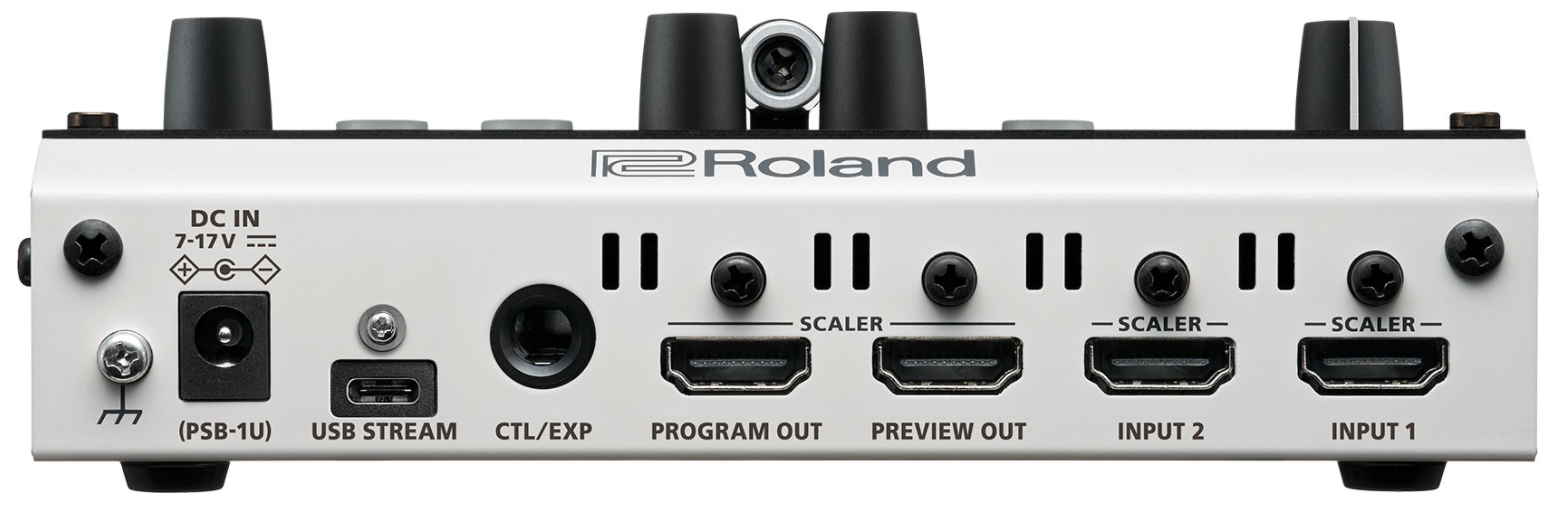

The USB Type C port on the back of the V-02HD MK II can:

  • Output audio and video to a computer
  • Input audio from a computer
  • Connect to the iPad Remote app
  • Backup and restore settings via Utility software
  • Update the firmware



Streaming Setup Guides

A USB-C cable is not included. The following cables are recommended:

If you use Zoom or Teams with a recommended cable and you notice any issues with the video quality, please use this guide to change your USB output setting:

If you have any other issues with your USB signal, this guide helps you troubleshoot the connection:



Streaming Software Guides

Windows

Windows and Mac

Some guides are written for the VR series models, but your V-02HD MK II's USB Streaming output is similar to the USB Streaming output on the VR series.



back to top

RECORDING VIDEO

You can record the V-02HD MK II's USB streaming output with software that can record UVC video.



A USB-C cable is not included. The following cables are recommended:

Here are some software guides:

Windows

Windows and Mac



back to top

SOFTWARE CONTROL

There is free control software for the V-02HD MK II:

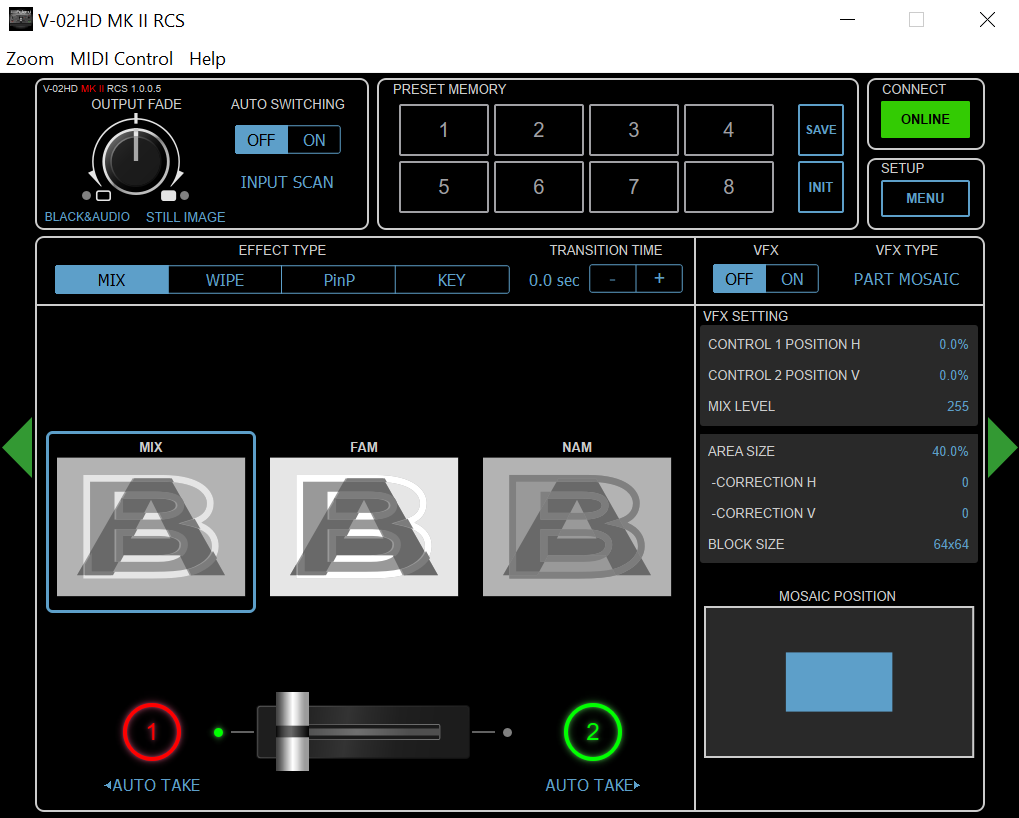

  • V-02HD MK II RCS for Windows and MacOS

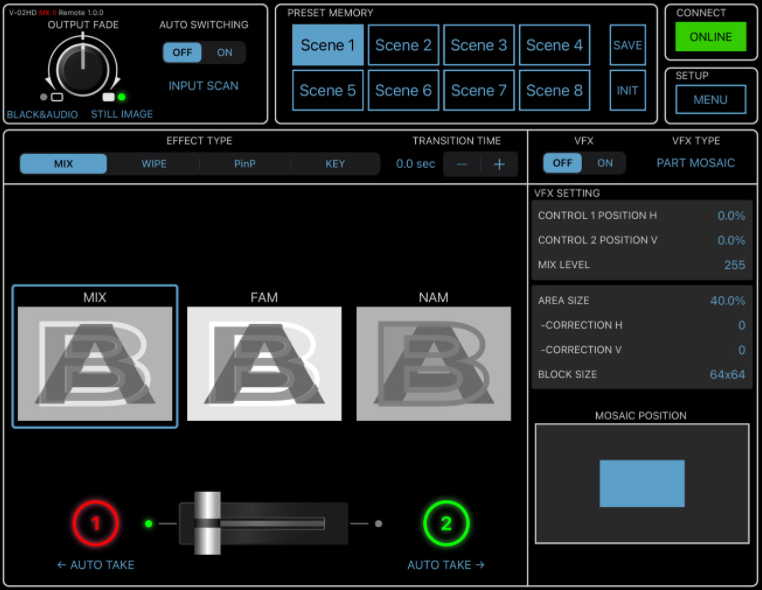

  • V-02HD MK II Remote for iPad

Update your firmware to the latest version for best compatibility.

mceclip0.png   mceclip3.png



To connect the V-02HD MK II to the RCS software, you can use either:

  • USB
    • Fully wired control, requires the following:
      • USB Type C to Type A cable
        • Note that you can still use the USB Streaming port for streaming and recording while using the RCS software

To connect the V-02HD MK II to its Remote app, you need the following:

  • Lightning to USB Camera Adapter
    • Apple MK0W2AM/A or MD821AM/A
  • USB-C (Type C to Type A) cable
    • Note that if you have an iPad Pro with a USB-C connector, you do not need the adapter, and can use a USB-C (Type C to Type C) cable instead.





back to top

PROTECTING SETTINGS

There are multiple ways to protect your settings on the V-02HD MK II:



back to top

FOOT SWITCH CONTROL

The V-02HD MK II supports control from a BOSS foot switch controller:



You can set them up in the CTL/EXP menu:



back to top

HDCP TROUBLESHOOTING

The V-02HD MK II supports many video source devices, but DVD/Blu-Ray players and Streaming Boxes require HDCP (High-bandwidth Digital Content Protection) to be turned on in the system settings. Once enabled, the signal will pass through.

But there are exceptions. If the V-02HD MK II's HDMI output is connected to a recording or streaming device, or a converter that outputs SDI or Analog video, that device will block the DVD/Blu-Ray player's HDCP copy-protected signal passing through the switcher.

So long as the only destination devices are displays or projectors, then you should not have any issues with enabling HDCP.

On the V-02HD MK II, turning on HDCP will also disable the USB streaming output.



HDMI CAT Extenders: These are a pair of converters that extend an HDMI signal by converting it to Ethernet and back to HDMI again. These extenders may add HDCP to the signal, even if the source is a camera. Please check with the extender's manufacturer regarding compatibility. SDI converters or HDBaseT extenders are recommended as they do not add or require HDCP.

Game Consoles: These may have HDCP enabled by default for all games and content, or just for streaming services and disc playback. If you want to stream or record the Roland's output, then HDCP needs to be disabled on both the game console and the Roland. Consoles either do this automatically or have a menu setting. Check your game console's manual for more information.



back to top

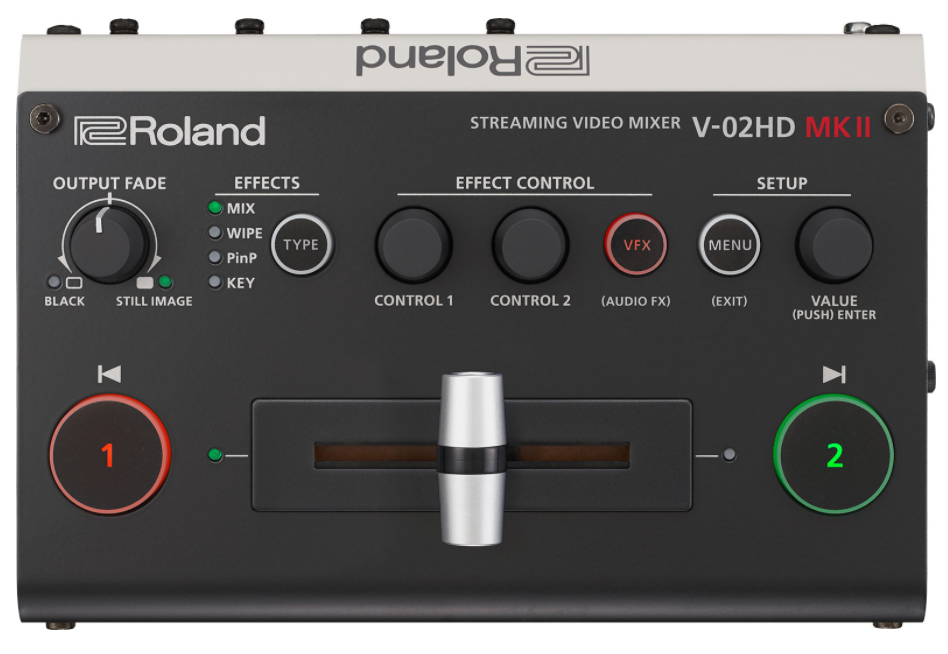

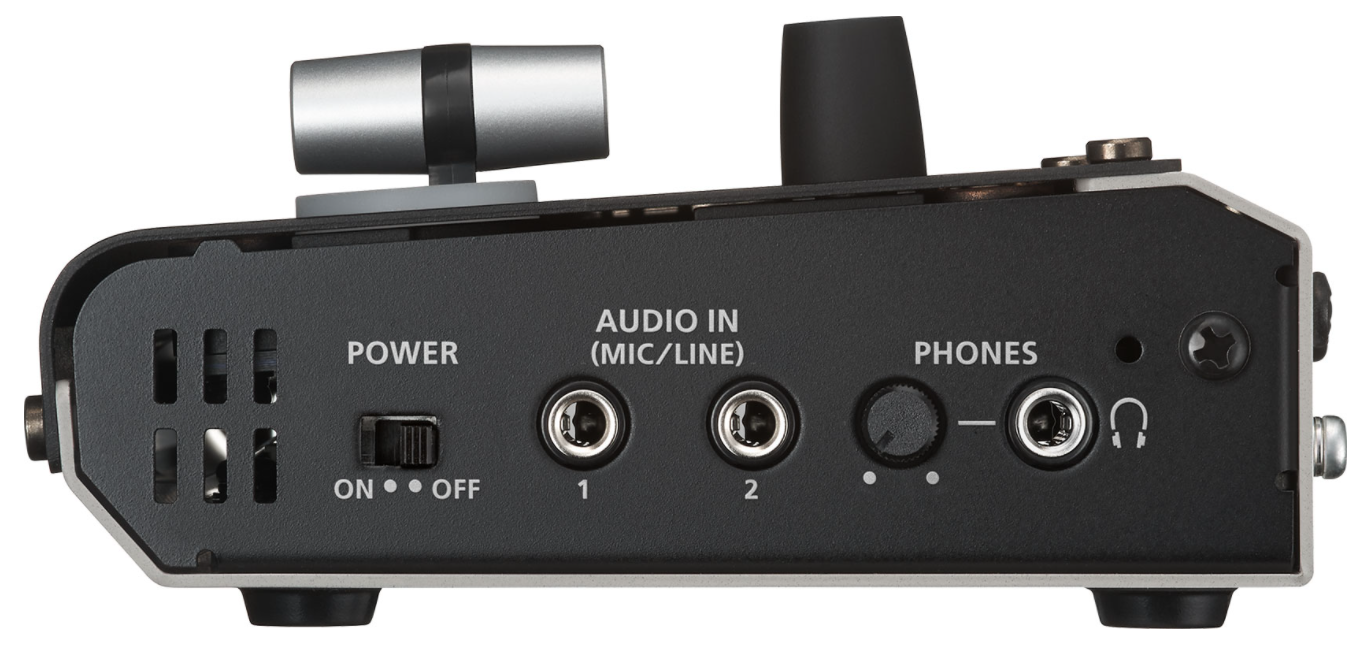

PRODUCT IMAGES

Click each image for a larger version:
