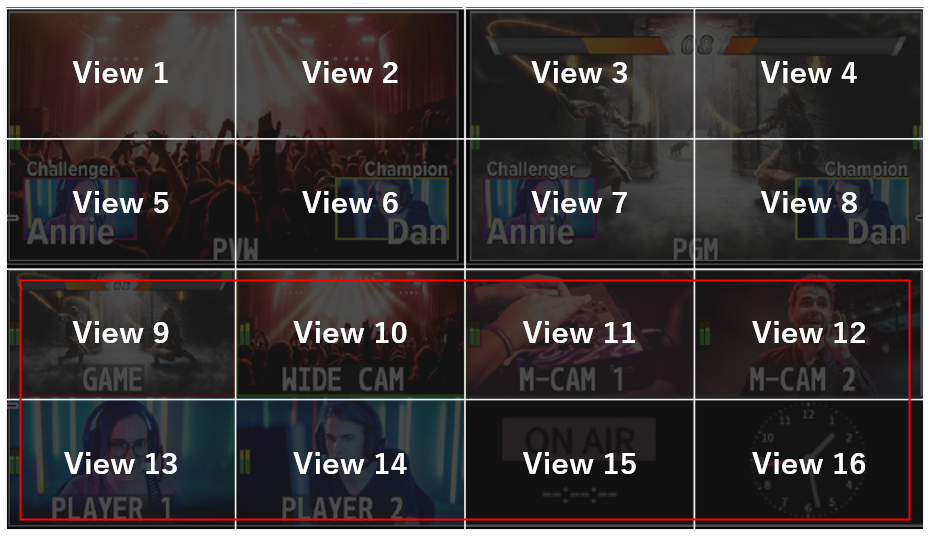

When selecting Views 1 to 8, a portion of the image from the PVW or PGM section shown at the top of the MULTI-VIEW screen appears, so these views cannot be used to preview input sources.

Once VenuSet is connected to the VR-6HD, the video assigned to the VIDEO SWITCHER [1]–[6] buttons and the information displayed in the two dashboards can be used as preview sources. By selecting one of the Views 9 to 16 as the preview source, you can view both the video source and status information such as the clock and streaming/recording state.



Please follow the steps below to configure the settings.

1. On the VR-6HD:
   1. Press the [MENU] button → go to "SYSTEM" → open "MULTI-VIEW SETTINGS".
   2. Disable the tally frames and labels in MULTI-VIEW.
      • TALLY FRAME
      • AUX/SOURCE INDICATOR
      • EXTERNAL REC INDICATOR
      • AUDIO LEVEL METER
      • PREVIEW LEVEL
2. On VenuSet:
   1. Select a preview source from Views 9–16.


If no video is received at all, please check the following:

• Ensure that the VR-6HD and VenuSet are properly connected with a USB 3.0-compliant cable.
  See the Connecting via USB section of the VenuSet manual.
• Make sure your iPad meets the operating requirements.
  See the Receive preview video via USB section of the VenuSet manual.
