This guide lists USB cables that are compatible with Professional AV products for streaming and recording with a computer.

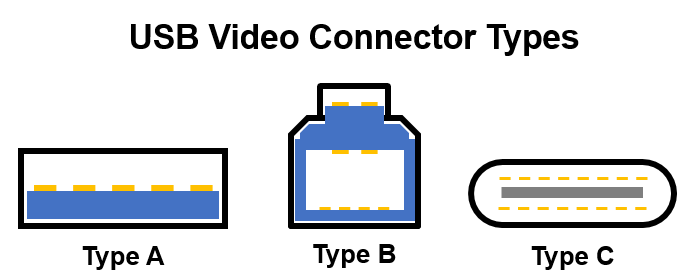

Type B Connector	Type C Connector
UVC-01* UVC-02* VC-100UHD VR-1HD VR-4HD VR-50HD VR-50HD MK II	V-02HD MK II V-160HD VR-6HD VR-120HD VR-400UHD**

* These models include a USB cable in the box.
** USB 3.1 (or 3.2) Gen 2 10 Gbps or higher cable recommended for 4K30 output.

• SR-20HD doesn not have USB output, it has a Type A 3.0 USB video input, which is compatible with UVC-01 and VR-4HD.
• V-4EX, VR-3, and VR-3EX have a USB video output with a Type B 2.0 connector, it is a different shape from the one pictured above. VR-5 has a USB Type A 2.0 connector.
• If your model is not listed, connect an HDMI output to a UVC-01 or UVC-02 to add USB streaming output.



Note: If you cannot find a cable in your country or region, please contact product support via Roland.com/Backstage and request a recommendation.





---

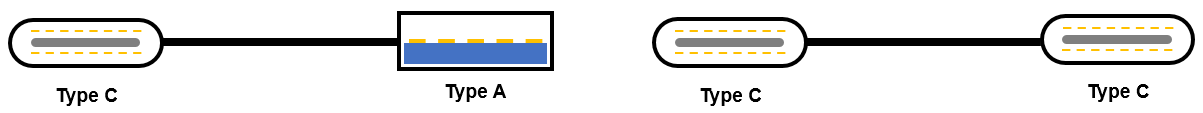

Recommended Cables: Type C

---

These cables are known to work and have no reported issues:

Brand	Model	Type	Speed	Length Tested
AINEX	U32ACMM10	C to A	USB 3.1 10 Gbps	1 m / 3.3 ft
AINEX	U32CCMM10P10	C to C	USB 3.1 Gen 2 10 Gbps	1 m / 3.3 ft
Amazon Basics	3.1-CM-AM--GEN1	C to A	USB 3.1	1.8 m / 6 ft
Anker	A8465011	C to A	USB 3.1 10 Gbps	0.9 m / 3 ft
Anker	Powerline USB-C	C to C	USB 3.0	0.9 m / 3 ft
Apple	MQ4H2AM/A *	C to C	USB 3.1 10 Gbps	0.9 m / 3 ft
Buffalo	BSUAC31120BK	C to A	USB 3.0 5 Gbps	1.8 m / 6 ft
Buffalo	BSUCC312P3A10BK	C to C	USB 3.1 10 Gbps	0.9 m / 3 ft
Cable Matters	201045 **	C to C	USB 3.1 5 Gbps	1.8 m / 6 ft
Elecom	USB3-AC10NBK	C to A	USB 3.1 10 Gbps	1 m / 3.3 ft
Elecom	USB3-AC20BK	C to A	USB 3.1 5 Gbps	2 m / 6.6 ft
Elecom	MPA-CC13A20NBK	C to C	USB 3.1 5 Gbps	2 m / 6.6 ft
Elfesoul	ES8101010-UCC-001 ***	C to C	USB 3.2 Gen 2 20 Gbps	3 m / 10 ft
Hosa	USB-306CA	C to A	USB 3.0 5 Gbps	1.8m / 6 ft
Hosa	USB-306CC	C to C	USB 3.1 Gen 2 10 Gbps	1.8m / 6 ft
Sanwa Supply	KU31-CA10	C to A	USB 3.1 10 Gbps	1 m / 3.3 ft
Sanwa Supply	KU31-CCP510	C to C	USB 3.1 10 Gbps	1 m / 3.3 ft
StarTech.com	USB31AC1M	C to A	USB 3.1 10 Gbps	0.9 m / 3 ft
StarTech.com	USB315C5C6	C to C	USB 3.0 5 Gbps	1.8 m / 6 ft

* Tested and recommended by customers

** Make sure it is 201045 and not 201040

*** Not compatible with Gen2 USB video output modes on VR-400UHD





---

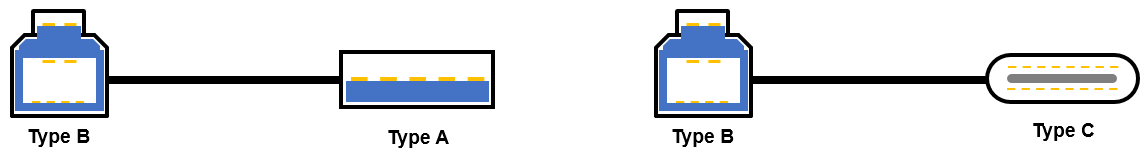

Recommended Cables: Type B

---

These cables are known to work and have no reported issues:

Brand	Model	Type	Speed	Length Tested
Amazon Basics	USB 3.0 Cable	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft
Belkin	F3U159B	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft
Cable Matters	201007	B to C	USB 3.0 5 Gbps	1.8 m / 6 ft
Monoprice	38614	B to C	USB 3.0 5 Gbps	1.8 m / 6 ft





---

Not Recommended: Type C

---

These cables will work with some systems, but have reported issues and are not recommended:

Brand	Model	Type	Speed	Length Tested
Anker	A8166011 *	C to A	USB 3.0	1.8 m / 6 ft
JSAUX	NZCTA3-1 **	C to A	USB 3.1	1.8 m / 6 ft

*  Make sure it is "Powerline" and not: "Powerline+", "Powerline III", or "Powerline II"

** This is listed as an upgraded version



These cables do not work with any known systems:

Brand	Model	Type	Speed	Length Tested
Amazon Basics	‎L6LUC025-CS-R	C to C	USB 2.0 480 Mbps	1.8 m / 6 ft
Apple	MM093AM/A *	C to C	USB 3.1 10 Gbps	0.9 m / 3 ft
Apple	MUF72AM/A *	C to C	USB 3.1 10 Gbps	0.9 m / 3 ft
Cable Matters	201040	C to C	USB 2.0 480 Mbps	2 m / 6.6 ft
JSAUX	TYCNZ-2	C to A	USB 2.0 480 Mbps	1.8 m / 6 ft
Powerman/Capshi	4336730631 **	C to A	USB 2.0 480 Mbps	2 m / 6.6 ft

* These are charging cables and may not be compatible

** Reported as not compatible





---

Not Recommended: Type B

---

These cables will work with some systems, but have reported issues and are not recommended:

Brand	Model	Type	Speed	Length Tested
Cable Matters	200007	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft
Pearstone	USB3-AB	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft
StarTech	USB3SAB	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft
Tripp Lite	U322	B to A	USB 3.0 5 Gbps	3 m / 10 ft
Tripp Lite	U328	B to A	USB 3.0 5 Gbps	7.5 m / 25 ft



These cables do not work with any known systems:

Brand	Model	Type	Speed	Length Tested
Hosa	USB303AB	B to A	USB 3.0 5 Gbps	0.9 m / 3 ft
Hosa	USB306AB	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft
Hosa	USB310AB	B to A	USB 3.0 5 Gbps	3 m / 10 ft
JSAUX	USB 3.0 Cable	B to A	USB 3.0 5 Gbps	1.8 m / 6 ft





---

Cable Specifications

---

If you are unable to find any of the recommended cables, these are the specifications:

• USB 3.0 or higher
• Super Speed
• 5 Gbps or higher: up to 1080P 60 FPS HD video
  • If it is USB 2.0, High Speed, and 480 Mbps, it will not work with HD video
• 10 Gbps or higher: up to 2160P 30 FPS 4K video


• Between 3 to 10 feet long

  • Longer cables may work, but they have not been tested

  • 10 ft cables may not support 4K video

• Type B to Type A connectors
  • For use with most PC's and some Macs


• Type B to Type C connectors
  • For use with most Macs and some PC's
    • A Thunderbolt cable is not needed
    • Some USB-C ports are only used for charging
    • Alternative: Apple adapter MJ1M2AM/A with a "B" to "A" cable
• Guide: Identify the ports on your Mac





---

Troubleshooting

---



If you have any issues with USB video and audio, please use these troubleshooting guides:

• V-02HD MK 2: Troubleshooting USB Video and Audio Output
• V-4EX: Troubleshooting USB Video and Audio Output
• V-160HD: Troubleshooting USB Video and Audio Output

• VR-1HD: Troubleshooting USB Video and Audio Output
• VR-4HD: Troubleshooting USB Video and Audio Output
• VR-50HD: Troubleshooting USB Video and Audio Output [MK I & II]
• VR-120HD: Troubleshooting USB Video and Audio Output

• UVC and V Series: USB Video Quality Issue with Zoom and Teams
