V-80HD: How do I composite with the PNG alpha channel?
With the V-80HD, you can use alpha channels (areas containing transparency data) to "cut out" an image and place it over the background video as a composite.
Follow the steps below:
- Press the [MENU] button.
- Select “DSK”.

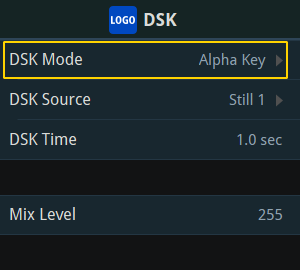

- Select “Alpha Key” for the DSK Mode and press the [VALUE] knob.
-
Select “DSK Source”.
-
Select a PNG with an alpha channel from Still 1–32.
* The alpha channel is ignored when using PinP & Key.
