You can save up to 32 still images to the internal memory of the V-80HD after loading them from an SD card or USB flash drive. Once the images are saved, you can assign them to channels even after the SD card or USB flash drive is disconnected.

* Still images saved on this unit remain in memory even after the power is turned off.
* Save the still image files (in the correct format for importing) to the root directory of an SD card or USB flash drive that was formatted using the V-80HD.
* You can also capture a still image from the input/output video and save it to this unit. See “Capturing a Still image from input/output Video” in the V-80HD Reference Manual for details.

Follow the steps below:

1. Save the still image in the root directory of the SD card or USB flash drive.
2. Insert the SD card into the SDXC card slot.
   * When using a USB flash drive, connect the USB flash drive to the USB HOST port.

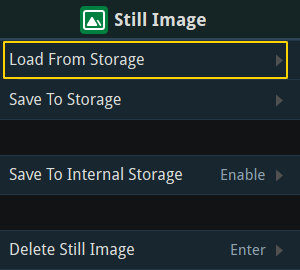

3. [MENU] button > “Still Image” > “Load From Storage” > select “Still Image”, and press the [VALUE] knob.

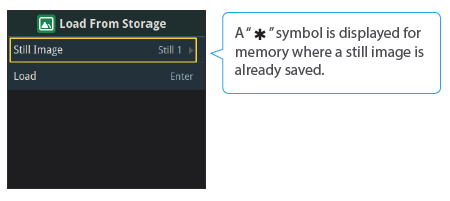

4. Use the [VALUE] knob to select the loading destination for the still image (Still 1–32), and press the [VALUE] knob.

5. Press the [EXIT] button to return to the previous screen.
6. Use the [VALUE] knob to select “Load”, and press the [VALUE] knob.

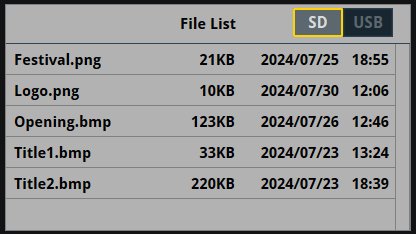

   A list of the still images in the storage is shown.

   * Use the “SD” or “USB” selector at the top right-hand corner of the screen to switch between the storage media to load from.
7. Use the [VALUE] knob to select the entire list of files, and press the [VALUE] knob.
8. Use the [VALUE] knob to select the still image file you want to load, and press the [VALUE] knob.

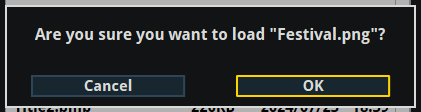

   A confirmation message appears.

   * If you decide to cancel, press the [EXIT] button.
9. Use the [VALUE] knob to select “OK”, and then press the [VALUE] knob.
   The still image is imported into the unit. When the operation is finished, the message “Completed.” appears.
10. Press the [MENU] button to quit the menu.
