The HDMI OUT and SDI OUT connectors on the V-80HD support 8-channel embedded audio. You can add input audio (sound) to an HDMI or SDI video that is output.

Follow the steps below.

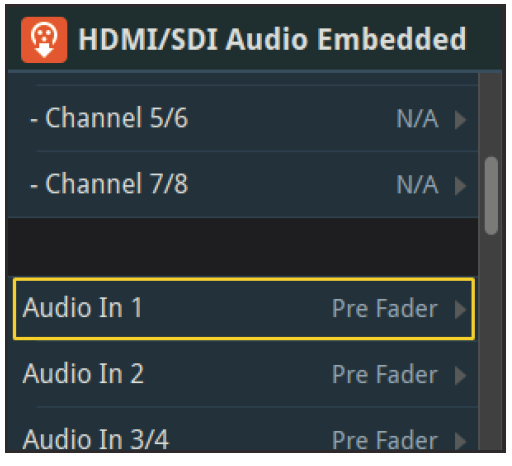

1. [MENU] button > “Audio Output” > select “HDMI/SDI Audio Embedded”, and press the [VALUE] knob.
2. Use the [VALUE] knob to select the HDMI or SDI embedded audio channel, and press the [VALUE] knob.
3. Use the [VALUE] knob to select the input audio you wish to assign to the channel, and press the [VALUE] knob.
4. Use the [VALUE] knob to select the input audio, and press the [VALUE] knob.


5. Use the [VALUE] knob to select “Dry”, “Pre Fader”, or “Post Fader”, and press the [VALUE] knob.

   Value	Explanation
   Off	No audio is sent.
   Dry	This sends the source audio with no effects applied.
   Pre Fader	Sends the effect-applied audio.
   Post Fader	The send volume is constant, regardless of the volume (Input Level).

6. Press the [MENU] button to quit the menu.
   The audio including channel 3–8 embedded audio is output from the HDMI OUT 1–3 connectors or the SDI OUT 1, 2 connectors.
