Learn how to cycle through your video inputs and switch to them using BOSS FS-5U and FS-6 foot switches with audio cables. This helps you operate your Roland switcher without sitting in front of it.

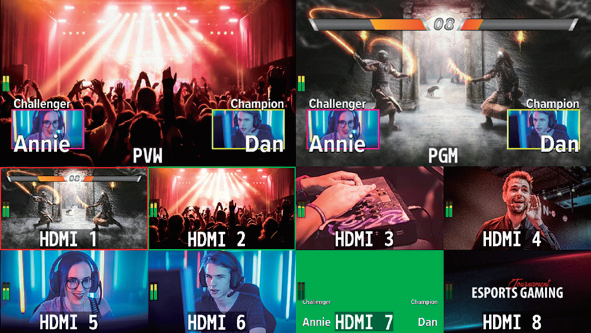

In this example, we have 3 cameras we want to switch between, and they appear on Inputs 1 through 3 on the multi-view. We will use Macros and the Sequencer to do this.

• In the menu, Inputs refer to the boxes on the Multi-View and 16 Input-View, not the physical input connectors HDMI 1-8 and SDI 1-8.
• Any HDMI or SDI input connector can be assigned to an Input in the Video Assign menu.





---

Create the Macros

---

Create 3 Macros, each one will select an HDMI input as your PST source, which appears as PVW on the multi-view.

In this example, we will use HDMI inputs 1-3. The PST source is Input 2 and appears on PVW.



Settings

• Menu > Macro > List Edit > Macro 1 > Add New Function

  • Function > PGM/PST Select
  • PGM CH > ----
  • PST CH > INPUT 1
• Menu > Macro > List Edit > Macro 1 > Add New Function

  • Function > PGM/PST Select
  • PGM CH > ----
  • PST CH > INPUT 2
• Menu > Macro > List Edit > Macro 1 > Add New Function

  • Function > PGM/PST Select
  • PGM CH > ----
  • PST CH > INPUT 3

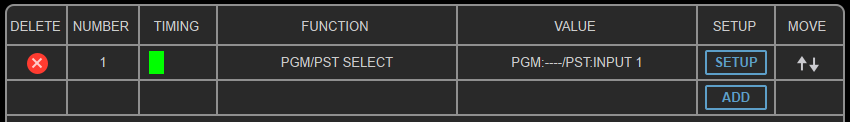

Example of Macro 1's settings in the RCS software.



Notes

• You can erase an existing Macro using the Initialize setting.
• You have 100 Macro slots, and you can use any Macro number you want to create these.
• Once you create the first Macro, you can copy it and edit the copy to save time.
• Remember to set PGM CH to "----", this tells the switch to not change that setting. It is the first option for that setting.





---

Create the Sequence

---

To execute these Macros using a foot switch, we need to add them to the Sequencer.

In this example, steps 1-3 on the list are assigned to the 3 Macros we created.



Settings

• Menu > Sequencer > Initialize > Yes
• Menu > Sequencer > Repeat Execute > On
• Menu > Sequencer > List Edit > Add New Function
  • Function > Macro
  • Exec > Macro 1
• Menu > Sequencer > List Edit > Add New Function
  • Function > Macro
  • Exec > Macro 2
• Menu > Sequencer > List Edit > Add New Function
  • Function > Macro
  • Exec > Macro 3

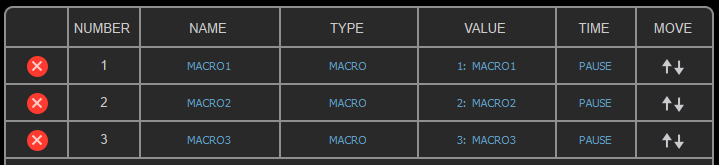

Example of the Sequencer list in the RCS software.



Notes

• Erase the current list using the Initialize setting in the menu (not available in RCS).
• The only Sequencer steps should be the Macros you created.
• Once you create the first Sequencer step, you can copy it and edit the copy to save time.
• Do not turn on Auto Sequence.





---

Foot Switch Setup

---

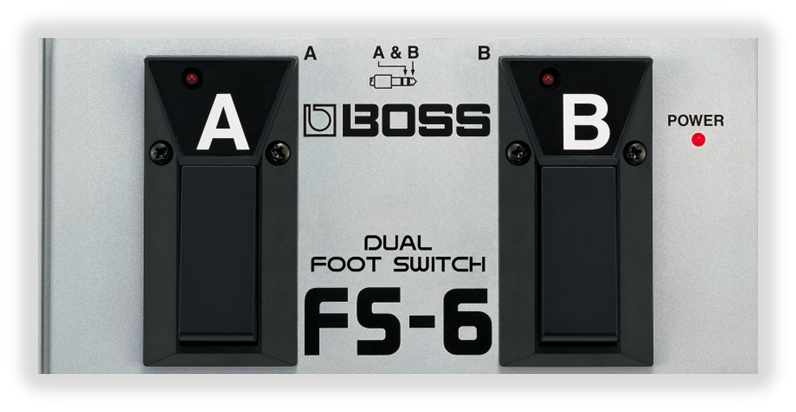

FS-6

• Button A cycles forward through your inputs, you will see them change in the PVW window on the multi-view.
• Button B swaps PVW with PGM, using a mix dissolve or wipe with Auto, or instantaneous with Cut. Press the Transition button to switch between Mix and Wipe.
• Use a single TRS cable connected to CTL/EXP 1 on the back of the Roland switcher.

Settings

• Menu > CTL/EXP > CTL/EXP 1 > CTL/EXP Type > CTL A & CTL B
  • Assign - CTL A - Category > Sequencer
  • Assign - CTL A - Value > Next
  • Assign - CTL B - Category > Take
  • Assign - CTL B - Value > Auto or Cut

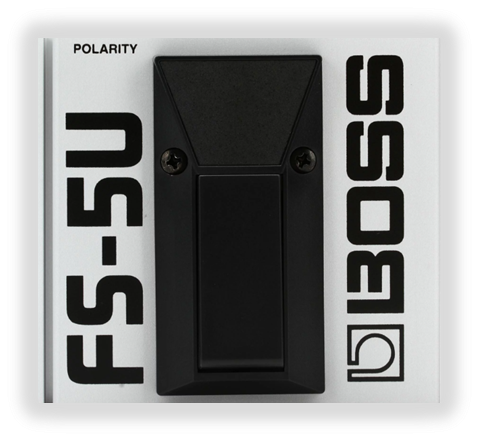

FS-6 & FS-5U

• FS-6 Button A cycles backwards and Button B cycles forward through your inputs, you will see them change in the PVW window on the multi-view.
• FS-5U swaps PVW with PGM, using a mix dissolve or wipe with Auto, or instantaneous with Cut. Press the Transition button to switch between Mix and Wipe.
• Use a single TS or TRS cable connected to CTL/EXP 2 on the back of the Roland switcher.

Settings

• Menu > CTL/EXP > CTL/EXP 1 > CTL/EXP Type > CTL A & CTL B
  • Assign - CTL A - Category > Sequencer
  • Assign - CTL A - Value > Previous
  • Assign - CTL B - Category > Sequencer
  • Assign - CTL B - Value > Next
• Menu > CTL/EXP > CTL/EXP 2 > CTL/EXP Type > CTL A & CTL B
  • Assign - CTL A - Category > N/A
  • Assign - CTL A - Value > ---
  • Assign - CTL B - Category > Take
  • Assign - CTL B - Value > Auto or Cut

Notes

• The FS-5U only uses CTL B, it does not recognize CTL A.
• The FS-5U does not use a battery, it is a passive device.
• The FS-6 uses battery power whenever a cable is connected to it, disconnect after use.





---

Testing

---

Use the Sequencer menu to turn it on or assign it to a User button in the System menu.

• Menu > System > User X SW
  • Category > Sequencer
  • Value > Mode On/Off

Use the foot switch to cycle through inputs on PVW and press the assigned Take button to output it to PGM.
