VR-6HD: Quickstart Guide

This article contains links and information to help you get started with the VR-6HD.

For additional support, please submit a ticket at roland.com/backstage



Quickstart Topics:

Product Videos

Instruction Manuals

Firmware Updates

Choosing Cameras

Video Formats

Audio Setup

Connecting Laptops

AeroCaster Switcher

Adding Live Graphics

Adding Still Images

Streaming Video

Recording Video

Software Control

Control Systems

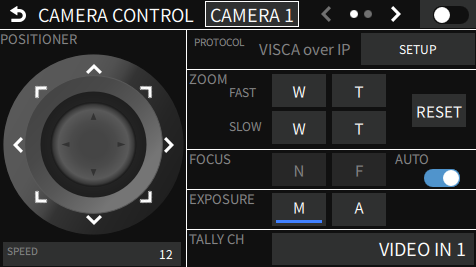

PTZ Camera Control

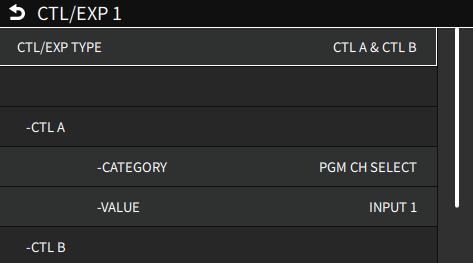

Foot Switch Control

Protecting Settings

HDCP Troubleshooting

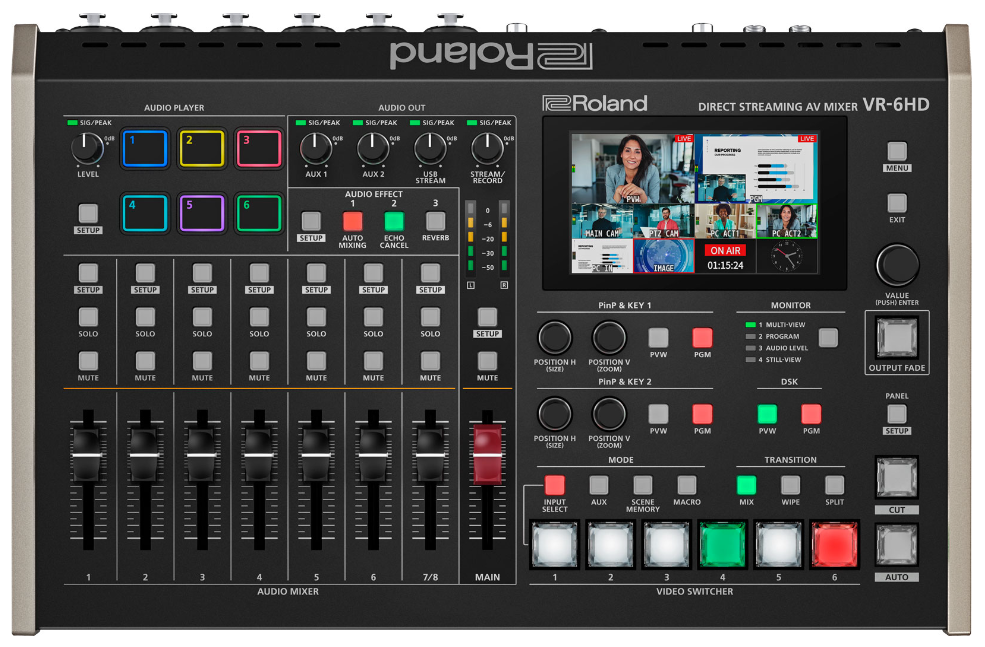

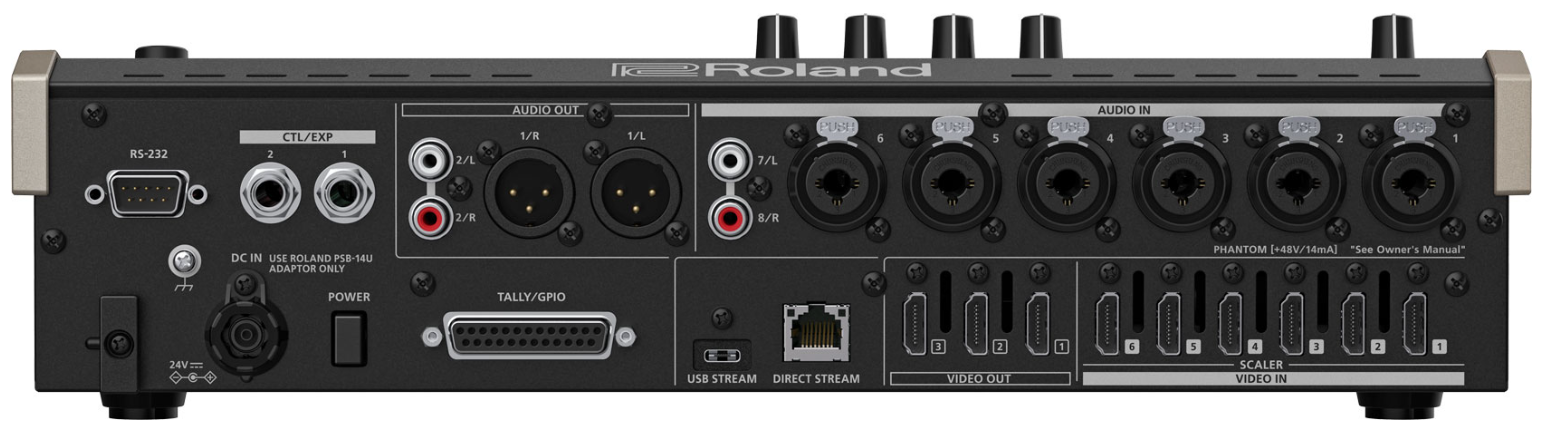

Product Images

Additional Links

Click on a topic to jump to that section




PRODUCT VIDEOS


Video Manual Tutorial



Introduction Video



back to top


INSTRUCTION MANUALS


Startup Guide - Covers connecting equipment and general information.

  • This is a PDF copy of the manual of the box.

Reference Manual - Contains detailed walkthroughs for every feature and menu setting.

  • This manual is PDF only.



back to top


FIRMWARE UPDATES


Please check that the firmware on your VR-6HD is version 1.09:

  • Go to: MENU > SYSTEM > VERSION

If it is an earlier version, use this update guide:



back to top


CHOOSING CAMERAS




These guides help you choose the best type of camera for your workflow, set it up to output a compatible video resolution, and also output video without menu overlays or screen information.



back to top


VIDEO FORMATS


These are the rules that video sources follow when connected to the VR-6HD. There are two settings in the System menu, System Format (aka resolution) and Frame Rate. The default video format is 1080p 59.94 Hz and recommended for most workflows.

MENU > SYSTEM > SYSTEM FORMAT > SYSTEM FORMAT

  • 1080p - HDMI inputs and outputs can be a mix of 1080i and 1080p
    • USB and LAN outputs can be a mix of 1080p and 720p
  • 720p - All inputs and outputs are 720p
    • Including USB and LAN
    • HDMI inputs 1-6 are multi-format, they convert the source's resolution to match the System Format setting.

MENU > SYSTEM > SYSTEM FORMAT > FRAME RATE

  • 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 - All HDMI outputs match the Frame Rate setting.
    • All HDMI inputs convert the source's frame rate to match the Frame Rate setting.
    • The 720p System Format and 720p USB Stream output do not support native 25, 29.97, or 30 Hz output.
    • If the Frame Rate setting is 50/59.94/60, you can halve it to 25/29.97/30.
      • Menu > System > USB Out > Frame Rate
      • Menu > System > Stream/Record > Frame Rate
    • You can double the frame rate of the Direct Streaming Output from 25/29.97/30 to 50/59.94/60 by disabling the video player.
      • If you don't, you will see the message "Resource Error" when you start a stream or recording.
        • Menu > Video Player > tap the Stop button
        • Menu > System > Stream/Record > Frame Rate

The following chart lists input and output combinations with different video formats:



480i/480P

576i/576P

720P 1080i 1080P XGA

  23.98

  24

N/A N/A N/A

HDMI
IN & OUT

USB & LAN OUT

N/A
  25 LAN OUT

  29.97

  30

HDMI IN

LAN OUT
  50

HDMI
IN & OUT



USB & LAN OUT

HDMI
IN & OUT

  59.94

  60

HDMI IN
(60 Hz)





back to top


AUDIO SETUP


When you first turn on the VR-6HD, it is set to mix all XLR, RCA, and embedded input audio at their current levels and output the mix via the HDMI, LAN, and USB Stream outputs. You can adjust the levels using either the physical faders or the touchscreen.



You can also assign any audio source to any physical fader, press that fader's Setup button, and select a different source from the drop-down menu along the top of the touchscreen.



If you are using the USB Streaming Output, make sure that both the Main FaderUSB Stream knob, and Stream/Record knobs are turned up to 0 dB.







back to top


CONNECTING LAPTOPS


On your PC or Mac, there are two ways to set up the computer's HDMI output to your VR-6HD: Duplicate and Extend.

  • Duplicate creates a copy of your Desktop, including your Taskbar or Dock. Your mouse will appear on both screens.
  • Extend creates a clean desktop, and you can move your mouse between the two.

These guides walk you through general setup in Windows 10 and MacOS:

If you use software that generates visuals or plays media files, there may be additional screen output settings in the software:





back to top


AEROCASTER SWITCHER


The VR-6HD gives you free access to Roland’s AeroCaster Switcher for iPad. With this app, you can wirelessly connect and switch up to five sources (phone cameras, tablet cameras, laptop webcams, and laptop browser tabs), then output a combined program feed to an HDMI input on the VR-6HD.



AeroCaster Switcher Product Page



back to top


ADDING LIVE GRAPHICS

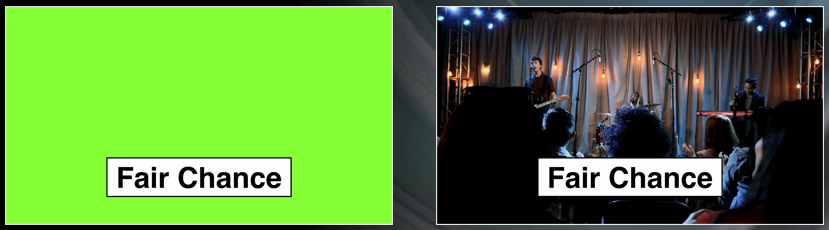

You can overlay graphics like lower thirds and logos using the DSK or Picture in Picture functions, which use keyers to remove a solid color or the alpha channel from an overlay source.






Here are the available keyer types:

PinP & Key 1-2: Luma, Chroma

DSK: Luma, Chroma, Alpha (PNG only), External (Key and Fill sources)





back to top


ADDING STILL IMAGES


You can import up to 16 still images using the Capture Image function, which creates a still image from any video input, or import them using a flash drive and the USB Memory port.

  • Menu > Video > Capture Image
  • Menu > Still Image > Load From Storage



  • A 16 GB or smaller USB Flash Drive is recommended
    • Larger drives may not format or function
    • SD card adapters and hard drives are not compatible
  • The Format setting in the menu will format the USB Flash Drive as "FAT32"
    • You can also format it using your computer, but using the menu is recommended

Here are the recommended settings to import a still image via USB:

Format

Bitmap (.bmp), 24-bit color, uncompressed

PNG (.png), 24-bit color + 8-bit alpha channel

* Alpha channel supported with DSK

JPEG (.jpg & .jpeg), 24-bit color

Resolution

Matches the System Format:

720P = 1280x720

1080i/1080P = 1920x1080

File Name

No more than 64 single-byte alphanumeric characters

* Add the extension ".bmp", ".png", ".jpg", or ".jpeg"



back to top


STREAMING VIDEO


The VR-6HD uses either the LAN Direct Stream or USB Stream port for livestreaming. LAN Direct Stream allows you to connect the VR-6HD directly to your network and stream to any platform that supports RTMP, without using a computer.

  • What is RTMP? Ever notice how a website link sometimes starts with the letters HTTP? RTMP is like the streaming version of that.

If you want to use VR-6HD with videoconferencing software like Zoom or Teams, use the USB Stream output.



The LAN Direct Stream port on the back of the VR-6HD can:

  • Stream video and audio without a computer
    • Use for Facebook, YouTube, etc.
  • Connect to the RCS software iPad Remote app (Future Update)
    • The Remote app also supports Bluetooth connections
  • Control the VR-6HD externally

The USB-C Stream port on the back of the VR-6HD can:

  • Stream video and audio using a computer
    • Use for Zoom, Teams, etc.
  • Connect to the RCS software iPad Remote app (Future Update)

The USB Type A port on the front of the VR-6HD can:

  • Import still images
  • Backup and restore settings
  • Update the firmware



USB Streaming Setup Guides

A USB-C cable is not included. The following cables are recommended:

If you use Zoom or Teams with a recommended cable and you notice any issues with the video quality, please use this guide to change your USB output setting:

If you have any issues with your USB signal, this guide helps you troubleshoot the connection:

  • VR-6HD: Troubleshooting USB Video and Audio Output (Coming Soon)



Streaming Software Guides

Windows

Windows and Mac



Direct Streaming Setup Guides

You can also log in directly to YouTube, Facebook Live, and Twitch, the VR-6HD will give you a short URL to enter in a web browser to complete the connection.

The following list contains important information on streaming platforms. This information is subject to change at any time. Please refer to the platform's support articles for the latest information.



Services that Support Direct Login

Facebook Live: There are no account restrictions for 30 FPS streams and you can stream to your Timeline, Pages, or Groups either publicly or privately.



Twitch: There are no account restrictions, but private and test streams are not possible, all streams are public.



YouTube: There are account requirements before you can stream directly via login, most require no action from you.

  • Most importantly, you have to verify your channel using a mobile phone number and wait up to 24 hours, using this link: youtube.com/verify

These are the requirements, please click here for more information. Note that these are YouTube's requirements and are subject to change at any time:

  • Restricted Streaming: Requires 50 followers, no account restrictions in the last 90 days, a verified channel (requires a mobile phone number), and up to a 24 hour waiting period for mobile streaming. There is a limit on viewers (number of followers +25) and archived streams default to private.
  • Unrestricted Streaming: In addition to the above requirements it requires 1000 followers and the waiting period may be longer than 24 hours for mobile streaming without restrictions.
  • If you do not meet these requirements: You can connect by setting up Custom RTMP in the menu.
    • Log into your YouTube account in a web browser, enter YouTube Studio, and look for the RTMP URL and Stream Key.



Services that Support Custom RTMP

For all other services, set them up as a Custom RTMP in the menu.

Some services listed below may require a paid monthly subscription and some do not support streaming outside of their dedicated mobile app, please see below for additional details.

The following information is subject to change at any time. Please refer to the platform's support articles for the latest information.



BoxCast: Set up as a Custom RTMP service.

More information is in this guide.



Crowdcast: Set up a Custom RTMP service.

More information on Crowdcast's RTMP Studio is in this guide.



Dacast: Set up a Custom RTMP service.

More information is in this guide.



Instagram: Instagram now provides RTMP information to set up a Custom RTMP service.

More information is in this guide.



LinkedIn: There are account requirements before you can stream. You will need 150 followers or connections, a history of posting original content, and no community guideline violations.

Once your account is activated for streaming, set up a Custom RTMP service.

More information in this guide.



Patreon: This platform uses Crowdcast, please scroll up for more information.



Restream: Set up a Custom RTMP service.

More information in this guide.

If you want to stream AeroCaster to Restream Studio, you need a company plan.

More information in this guide.



Snapchat: This platform does not appear to support livestreaming at this time.



TikTok: There are account requirements before you can start a stream with the TikTok app. There may be additional requirements to get a RTMP URL and Stream Key.

Direct mobile streaming from outside the TikTok app is not supported, but you can set up a Custom RTMP service by setting up the stream in the TikTok app to get the RTMP URL and Stream Key.



Twitter: Set up a Custom RTMP service.

More information on Twitter's Media Studio Producer in this guide.



Vimeo: Set up a Custom RTMP service.

More information is in this guide.



back to top


RECORDING VIDEO


You can record the following at the same time to the SD card on the VR-6HD.

  • MP4 files containing a single video and audio bus
  • WAV files containing a single audio bus
    • Video Bus Options: Program, Sub Program, Preview, AUX, Multi-View, Still-View
      • Menu > Video > Output Assign > Stream/Record
    • Audio Bus Options: Main Bus, AUX 1 Bus, AUX 2 Bus
      • Menu > Audio > Output Assign > Stream/Record

  • VR-6HD: Audio and Video Recording
    (Reference Manual, page 58)

An SDXC card is not included. The following cards are recommended:



You can also record the VR-6HD's USB streaming output with software that can record UVC video.

A USB-C cable is not included. The following cables are recommended:

Additionally, the VR-6HD has a Record Control function that will start and stop recording via HDMI with compatible external recorders. You can assign it to a User button on the LCD monitor.

  • Menu > Dashboard > LCD Assign A (or B) > User Button 1/2 (or 3/4) > Category > External Rec Control



Here are some software guides:

Windows

Windows and Mac



back to top


SOFTWARE CONTROL

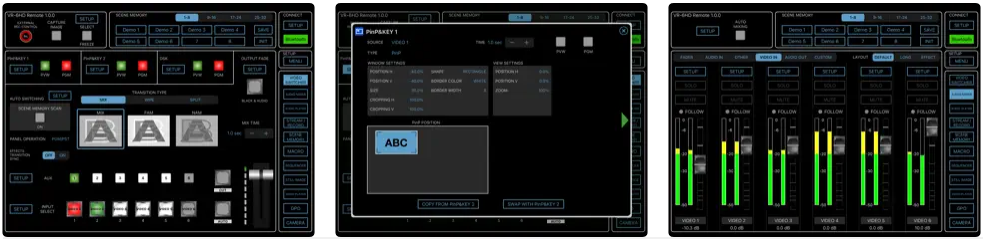

There is free control software for the VR-6HD:

If it does not connect, update your firmware to the latest version.



To connect the VR-6HD to the RCS software, you can use either:

  • USB
    • Fully wired control, requires the following:
      • USB Type C to Type A cable
        • Note that you can still use the USB Streaming port for streaming and recording while using the RCS software
  • LAN
    • Wired VR-6HD and computer via Ethernet
      • Create a 4-digit network password in the LAN Control menu to use this feature
  • RS-232
    • Wired VR-6HD and computer via RS-232
      • Note that the VR-120HD has a 9-pin RS-232 port

To connect the VR-6HD to the Remote app, you can use either:

  • Bluetooth
    • Fully wireless control
  • LAN
    • Wired VR-6HD via Ethernet
      • Create a 4-digit network password in the LAN Control menu to use this feature
    • Wireless iPad
  • USB
    • Fully wired control, requires the following:
      • USB Type C to Type A cable
      • Apple Lightning to USB Camera Adapter
        • Apple MK0W2AM/A or MD821AM/A
        • Note that if you have an iPad Pro with a USB-C connector, you do not need the adapter, and can use a USB-C (Type C to Type C) cable instead



back to top


CONTROL SYSTEMS


Information about remote control connections and commands will be available soon.





back to top


PTZ CAMERA CONTROL


You can control up to 6 PTZ cameras over a network using the VR-6HD's touchscreen.





Compatible PTZ brands include: Avonic, Canon, JVC, Panasonic, PTZ Optics, and Sony.

  • Sony cameras use the "VISCA Over IP" protocol.
    • Other brands may work with the "VISCA Over IP" protocol, but are not officially supported.
  • Supports PTZ control only over IP.
    • RS-232 and RS-422 cameras are not compatible.





back to top


FOOT SWITCH CONTROL


The VR-6HD supports control from up to 2 BOSS foot switch controllers:



You can set them up in the CTL/EXP menu.

  • MENU > REMOTE> CTL/EXP > CTL/EXP 1/2 > CTL/EXP TYPE
    • Select CTL A & CTL B for foot switch controllers
      • The FS-5U only uses the command assigned to CTL B
    • Select EXP for expression pedals



back to top


PROTECTING SETTINGS


There are multiple ways to protect your settings on the VR-6HD:



back to top


HDCP TROUBLESHOOTING


The VR-6HD supports many video source devices, but DVD/Blu-Ray players and Streaming Boxes require HDCP (High-bandwidth Digital Content Protection) to be turned on in the system settings. Once enabled, the signal will pass through.

But there are exceptions. If the VR-6HD's HDMI output is connected to a recording or streaming device, or a converter that outputs SDI or Analog video, that device will block the DVD/Blu-Ray player's HDCP copy-protected signal passing through the switcher.

So long as the only destination devices are displays or projectors, then you should not have any issues with enabling HDCP.

On the VR-6HD, turning on HDCP will also disable the SDI, LAN, and USB streaming outputs.



HDMI CAT Extenders: These are a pair of converters that extend an HDMI signal by converting it to Ethernet and back to HDMI again. These extenders may add HDCP to the signal, even if the source is a camera. Please check with the extender's manufacturer regarding compatibility. SDI converters or HDBaseT extenders are recommended as they do not add or require HDCP.

Game Consoles: These may have HDCP enabled by default for all games and content, or just for streaming services and disc playback. If you want to stream or record the Roland's output, then HDCP needs to be disabled on both the game console and the Roland. Consoles either do this automatically or have a menu setting. Check your game console's manual for more information.



back to top


PRODUCT IMAGES


Click each image for a larger version:







back to top


ADDITIONAL LINKS


  • VR-6HD Manuals
    • Owner's Manual, Reference Manual, Remote App Manual, etc.



back to top




支持

Quick Links
