Roland Switchers: How to Stream to Twitch with the "Use Web App" Setting

Use this guide to stream to Twitch using Roland AV mixers with Direct Streaming output, which is not the same as USB Streaming output. You can link your account using a web browser with the Roland Web App.

The following models have Direct Streaming:

SR-20HD
VR-6HD
VR-120HD

AeroCaster has direct streaming, but does not use the web app.

Roland Hardware Setup

Connect your Roland AV mixer with a network cable to a Wi-Fi router with internet. Most routers will automatically assign an IP address using DHCP, so it's recommended to keep the default setting:

SR-20HD: Menu > Network > LAN Setup > Configure > Using DHCP
VR-6HD: Menu > Network > Configure > Using DHCP
VR-120HD: Menu > Network > LAN Setup > Configure > Using DHCP

In the Stream menu, set one of the services to Twitch and you will see a setting called Use Web App or Use Web Application.

SR-20HD: Menu > Stream > Service 1/2 > Twitch - Use Web App
VR-120HD: Menu > Stream/Record > Service 1/2 Setup > Twitch
- Go back one page and select Use Web Application

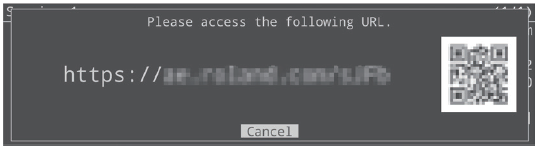

You will get a short URL and QR code. Use either to access the Roland Web App page.

Example from SR-20HD

Roland Web App Setup

Use a computer for the initial setup. After that, you can easily use a mobile device to set up the stream.

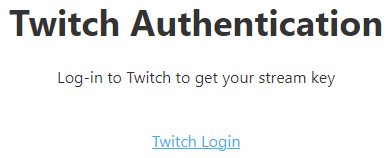

When you first open the Web App, you will see this message.

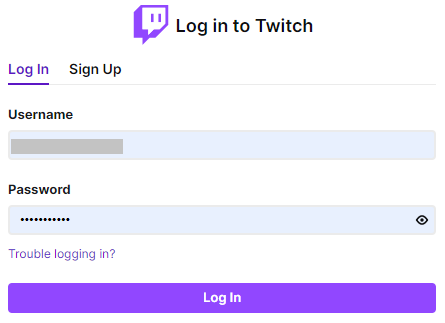

If you are already logged into the Twitch site with the web browser you are using, it will skip this screen.

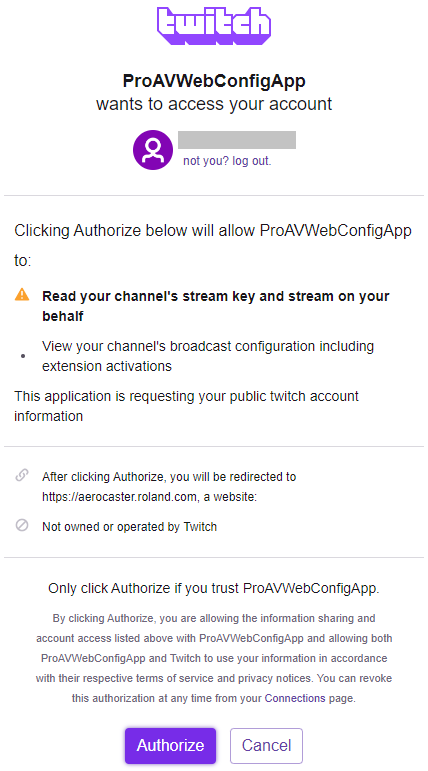

If setting up the Roland Web App with Twitch for the first time, you will see a pop-up window asking for permission to connect your account. You need to accept all the prompts to stream with your Roland AV mixer.
